Damper On Front Brake Caliper Assembly Overview

NOTE:

Not all models have the balance weight. This does not affect removing, installing and servicing the brake caliper.

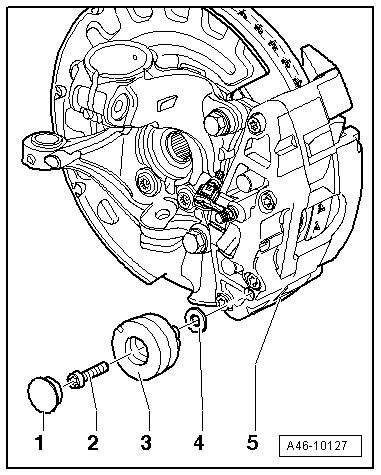

Fig 1: Damper On Front Brake Caliper Assembly Overview
GWWA46-10127Courtesy of AUDI OF AMERICA, LLC
  1. Dust Cap
  2. Bolt
    • Always replace.
    • 10 Nm
  3. Damper
    • Removing and installing, refer to DAMPER .
  4. Washer
  5. Brake Caliper
