Front Seat Lumbar Support Adjustment Switches E176 And E177

Removing

-- Remove tunnel side trim panel. Refer to SILL SIDETRIM .

-- Disconnect the connector -4-.

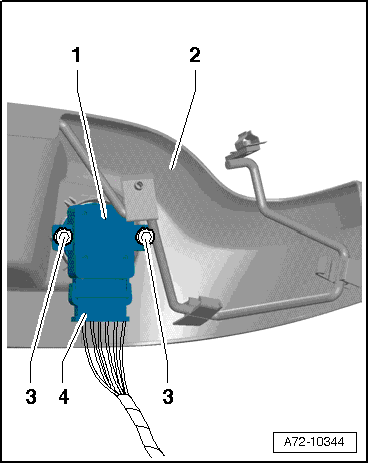

Fig 1: Identifying Front Seat Lumbar Support Adjustment Switches E176 And E177

Courtesy of AUDI OF AMERICA, LLC

NOTE:

On vehicles with manual front seats and passenger occupant detection system (country-specific), the connector -4- is connected from above, in contrast to the illustration.

-- Remove bolts -3- (quantity: 2).

-- Remove Driver Seat Lumbar Support Adjustment Switch -E176- or -E177- -1- from trim -2-.

Installation

Fig 2: Identifying Seat with Four-Way Lumbar Support Components

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Route wires as close to the coupling -4- as possible.
