Rear Bumper Spoiler

Removing

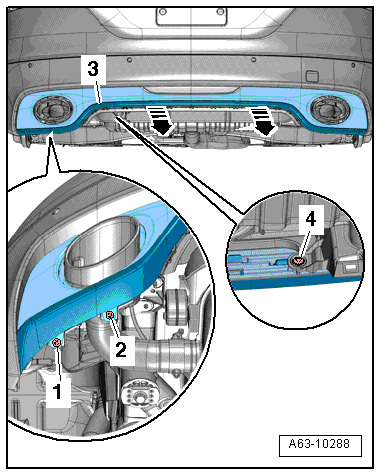

Fig 1: Identifying Rear Bumper Spoiler

Courtesy of AUDI OF AMERICA, LLC

-- Remove the diffuser trim. Refer to DIFFUSER TRIM .

-- Remove screw -4- on the left and right.

-- Remove screws -1- and -2- on the lower trim.

-- Remove lower trim -3- on the rear bumper -arrows-.

-- Remove spoiler -2- on lower trim -1- -arrows-.

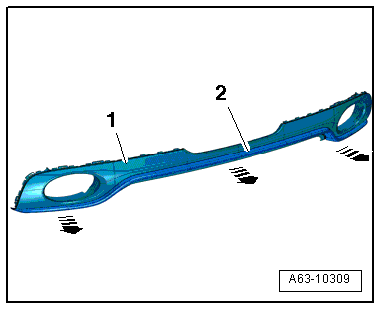

Fig 2: Identifying Spoiler Lower Trim

Courtesy of AUDI OF AMERICA, LLC

Installation

• For the correct tightening specifications, refer to REAR BUMPER ASSEMBLY OVERVIEW .

Install in reverse order of removal. Note the following:

-- The spoiler and the lower trim must engage completely.

-- Install the diffuser trim. Refer to DIFFUSER TRIM .
