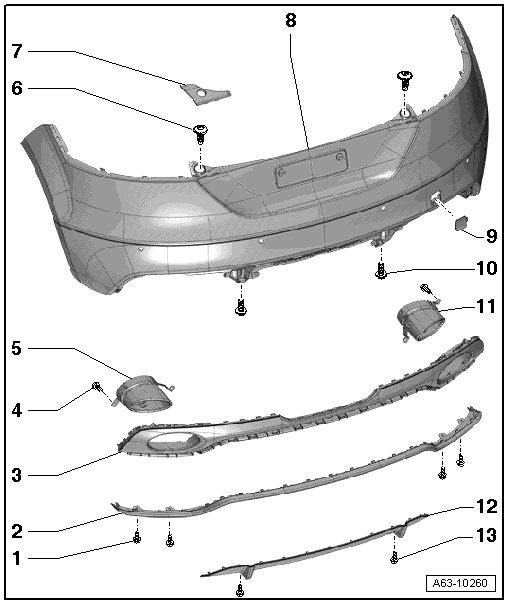

Rear Bumper Assembly Overview
- Bolt
- Quantity: 4
- 2 Nm
- Bumper spoiler
- Removing and Installing, refer to REAR BUMPER SPOILER
- Lower bumper trim
- Removing and Installing, refer to REAR BUMPER SPOILER
- Bolt
- Quantity: 4
- 2 Nm
- Left exhaust pipe trim
- Removing and Installing, refer to EXHAUST PIPE TRIM
- Bolt
- Quantity: 2
- 2.5 Nm
- Cover strip
- For bumper
- Removing and Installing, refer to REAR BUMPER
- Bumper
- Removing and Installing, refer to REAR BUMPER
- Cover
- For the towing eye
- Bolt
- Quantity: 2
- 2.5 Nm
- Right exhaust pipe trim
- Removing and Installing, refer to EXHAUST PIPE TRIM
- Diffuser trim
- Removing and Installing, refer to DIFFUSER TRIM
- Bolt
- Quantity: 2
- 2 Nm
