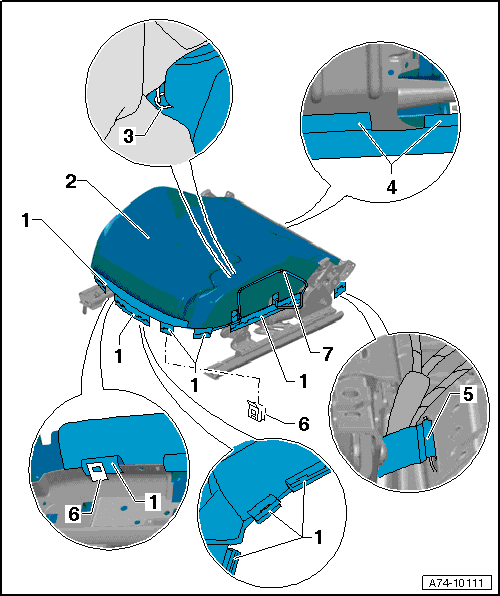

Seat Pan Cover And Upholstery Assembly Overview
The covers and upholstery are described for a front seat (electric seat). The covers and upholstery for a manual front seat are the same and are not described separately.
- Retaining strip
- Cover with upholstery
- Removing and Installing, refer to SEAT PAN COVER AND UPHOLSTERY
- Cushion clamp
- For securing cover to upholstery
- Always replace if removed
- Install in same location as before removal
- Retaining strip
- Retaining strip
- Spring clamp
- Quantity: 2/seat
- Connected to seat pan
- Retaining bracket
- For sill side trim
- Assembly Overview, refer to SILL SIDE TRIM RETAINING BRACKET ASSEMBLY OVERVIEW
- Removing and Installing, refer to SILL SIDE RETAINING BRACKET TRIM
