Backrest Cover And Upholstery Assembly Overview

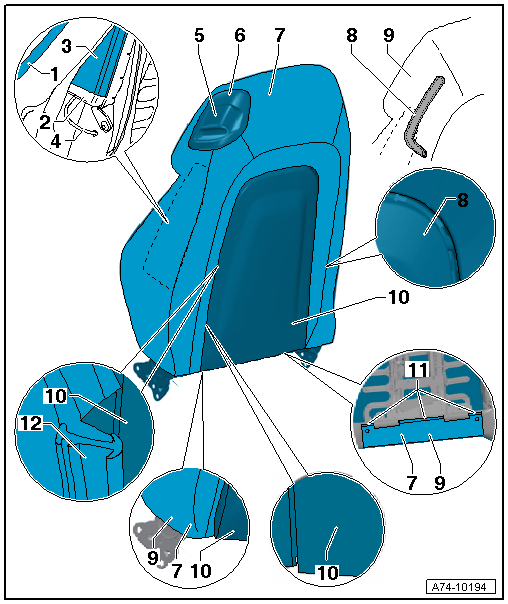

Fig 1: Identifying Backrest Cover And Upholstery Assembly

Courtesy of AUDI OF AMERICA, LLC

1. Retaining strip
2. Side Airbag
   • Removing and Installing, refer to SIDE AIRBAG
3. Side airbag pocket
   • Sewn into cover
4. Wiring
   • For side airbag
5. Handle
   • Coupe only
   • Manual front seat:
     • Removing and Installing, refer to TRIM WITH ENTRY ASSISTANCE HANDLE, COUPE ONLY
   • Power front seat:
     • Removing and Installing, refer to TRIM WITH ENTRY ASSISTANCE HANDLE, COUPE ONLY THROUGH 10.06
6. Trim
   • Coupe only
   • Manual front seat:
     • Removing and Installing, refer to TRIM WITH ENTRY ASSISTANCE HANDLE, COUPE ONLY
   • Power front seat:
     • Removing and Installing, refer to TRIM WITH ENTRY ASSISTANCE HANDLE, COUPE ONLY THROUGH 10.06
7. Cover with upholstery
   • Coupe only
   • Removing and Installing, refer to BACKREST COVER AND UPHOLSTERY
8. Retaining loop with push button
   • For seat belt
   • Roadster only
9. Cover with upholstery
   • Roadster only
   • Removing and Installing, refer to BACKREST COVER AND UPHOLSTERY
10. Backrest cover
    • Manual front seat:
      • Removing and Installing, refer to BACKREST COVER
    • Power front seat:
      • Removing and Installing, refer to BACKREST COVER
11. Retaining strip
    • Quantity: 3
12. Retaining strip
    • Circular
    • Securing backrest covering to backrest cover
