Lumbar Support Adjustment Switches E176 And E177 Assembly Overview

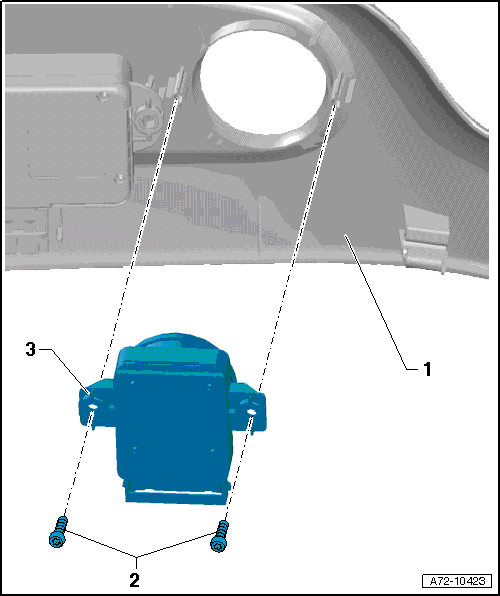

Fig 1: Lumbar Support Adjustment Switches E176 And E177 Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Sill-side trim
2. Bolt
   • 0.5 Nm
   • Quantity: 2
3. Lumbar support adjustment switch
   • Driver side -E176-
   • Passenger side -E177-
   • Removing and Installing, refer to LUMBAR SUPPORT ADJUSTMENT SWITCHES E176 AND E177
   • Switch and actuator cannot be disconnected and replaced separately
     • Connector connecting direction from below
   • On power front seats with passenger occupant detection system (country-specific), the driver seal lumbar support adjustment switch -E176- or -E177- is rotated 180° when installed
     • Connector connecting direction from above
