Lumbar Support Adjustment Switches E176 And E177

Removing

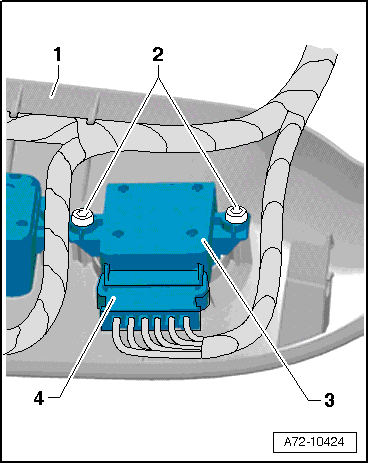

Fig 1: Identifying Lumbar Support Adjustment Switches E176 And E177 Components

Courtesy of AUDI OF AMERICA, LLC

-- Remove sill side trim -1-. Refer to SILL SIDE TRIM .

-- Disconnect the connector -4-.

-- Remove bolts -2- (quantity: 2).

-- Remove driver seal lumbar support adjustment switch -E176- -3- or front passenger seat lumbar support adjustment switch -E177- from sill side trim -1-.

Installation

Fig 2: Identifying Lumbar Support Adjustment Switches E176 And E177 Components

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Route wires as close to the coupling -4- as possible.
