Diffuser Trim

Removing

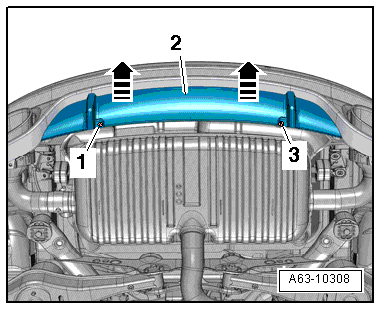

Fig 1: Identifying Diffuser Trim

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and -3-.

-- Remove diffuser trim -2- -arrows-.

Installation

• For the correct tightening specifications, refer to REAR BUMPER ASSEMBLY OVERVIEW .

Install in reverse order of removal. Note the following:

-- The diffuser trim must engage completely.
