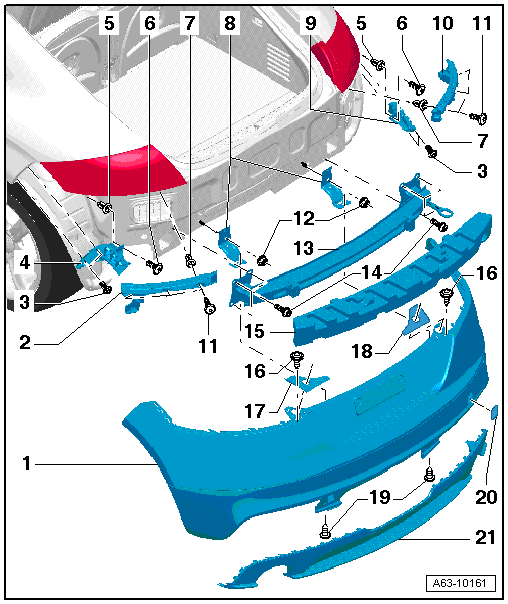

Rear Bumper Assembly Overview
- Bumper
- Removing, refer to REAR BUMPER
- Left inner guide piece
- Bolt
- 2.5 Nm
- Left outer guide piece
- Clip
- Slid into side panel.
- Bolt
- 2.5 Nm
- Clip
- Slid into side panel.
- Bracket
- Right inner guide piece
- Right outer guide piece
- Bolt
2.5 Nm
- Nut
- 4 Nm
- Side impact bar
- Bolt
- 23 Nm
- Impact absorber
- Slid onto impact member.
- Bolt
- 2.5 Nm
- Left cover strip
- Removing Figure
- Right cover strip
- Bolt
- 2.5 Nm
- Towing hook cover
- Lower cover
