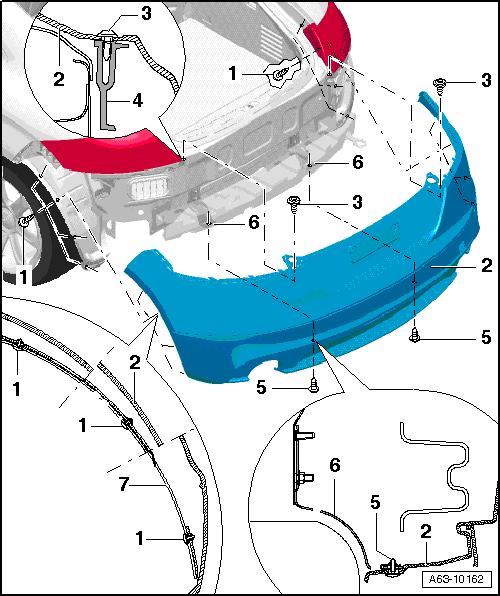

Rear Bumper
NOTE:
Prior to removal of the bumper, the tail lamps must be removed.
- Screws
- 1.5 Nm
- Rear Bumper
-- To remove, remove bolts -1- on wheel housing liner, bolts -3- under cover strip, refer to item and bolts -5- from bracket -6-.
-- First disengage bumper from outer guide piece, then remove toward rear from inner guide piece.
- Bolt
- Cover strip, removing, see Figure
- 2.5 Nm
- Inner guide piece
- Bolt
- 2.5 Nm
- Bracket
- Wheel housing liner
