Impact Member And Impact Absorber Assembly Overview

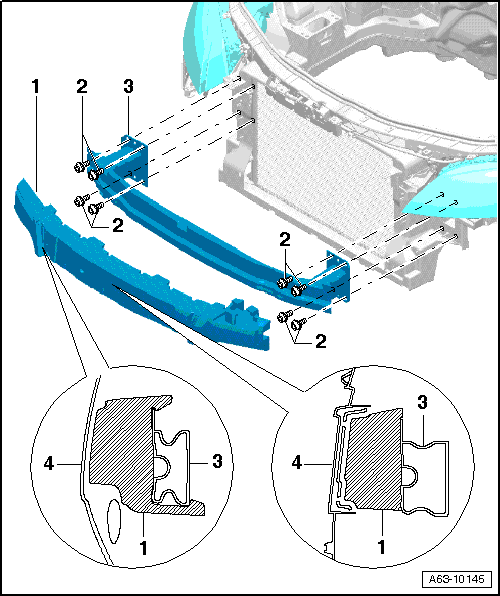

Fig 1: Identifying Impact Member And Impact Absorber Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Impact absorber
   • Removing and Installing, refer to IMPACT ABSORBER
2. Bolt
   • 30 Nm
3. Side impact bar
   • Removing and Installing, refer to IMPACT MEMBER
4. Bumper
