Impact Member

Removing

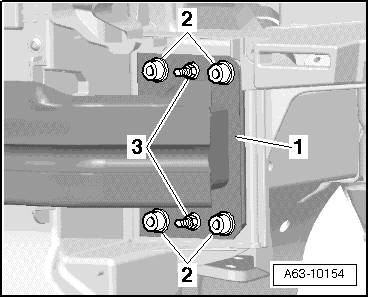

Fig 1: Identifying Impact Member

Courtesy of AUDI OF AMERICA, LLC

-- Remove the impact absorber. Refer to IMPACT ABSORBER .

-- Unscrew screws -2- and remove clamping washers -3-.

-- Remove the impact bar -1-.

Installation

Install in reverse order of removal. Note the following:

• For the correct tightening specifications, refer to IMPACT MEMBER AND IMPACT ABSORBER ASSEMBLY OVERVIEW .

-- Install the impact absorber. Refer to IMPACT ABSORBER .
