Backrest Frame And Panel Assembly Overview

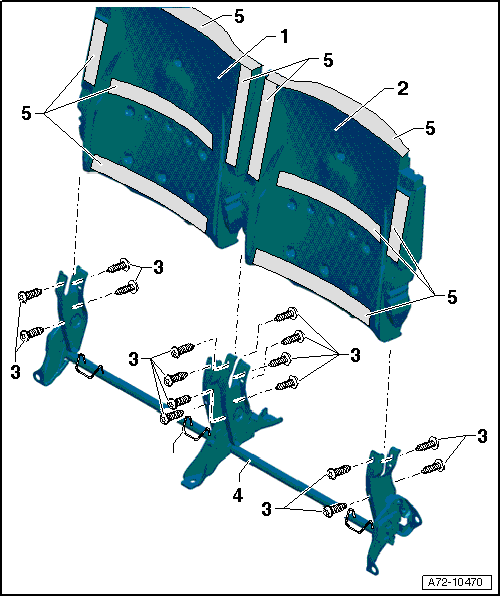

Fig 1: Rear Seat Latch Child Seat Anchorage Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Right backrest shell
- Removing and Installing, refer to BACKREST PANEL
- Front side taped with two-sided adhesive tape
- Rear side cover with adhesive film
Left backrest shell
- Removing and Installing, refer to BACKREST PANEL
- Front side taped with two-sided adhesive tape
- Rear side cover with adhesive film
Bolt
- 4.0 Nm
- Quantity: 16
Backrest frame
- Removing and Installing, refer to BACKREST FRAME
- Optional equipment:
  - with child seat anchor (LATCH)
  - without child seat anchor
Double sided adhesive tape
- Attach to front side and upper edge of backrest shell
