Front backrest, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Identifying Torque Wrench V.A.G. 1331

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Torque wrench V.A.G 1331

Fig 2: Special Tool - Engine And Transmission Holder VAS 6095

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Engine and transmission holder VAS 6095

Fig 3: Fixture For Seat Repair VAS 6136

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fixture for seat repair VAS 6136

CAUTION: Observe safety precautions for work on airbags → Airbag safety precautions .

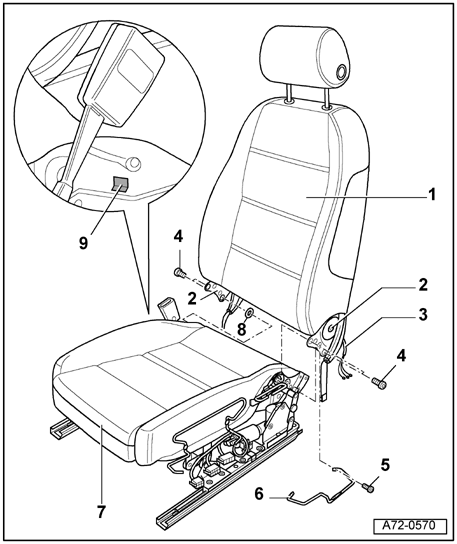

Fig 4: Front Backrest Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Backrest

Removal:

Remove seat → Front power seats with memory, removing and installing .
Mount the fixture for seat repair VAS 6136 on the engine and transmission holder VAS 6095.
Attach the front seat to the fixture for seat repair VAS 6136.
Remove side trim on sill side → Side panels on door sill side, removing and installing .

Remove side trim on tunnel side → Side panels on door sill side, removing and installing .
Remove screw - 5 -.
Turn bracket - 6 - upward.
Remove bolts - 4 - (Qty. 4).

Disengage retaining strip - 9 - from seat pan - 7 -.
Pry off backrest mounting brackets - 2 - (Qty. 2) on guides in seat pan - 7 -.
Tip backrest - 1 - forward on seat.
Push cushion aside and carefully disconnect wiring harness - 3 - from seat pan - 7 -.

Remove backrest - 1 -.

Installing:

Installation is reverse of removal. Observe the following when doing so:

Position spacer - 8 - on tunnel side onto lower guide in seat pan so that the spacer stands flush with guide.
Always replace bolts - 4 - (Qty. 4).
Cut threads in backrest frame before installing bolts - 4 - (Qty. 4).

For seats with seat memory:

Perform a basic setting for backrest or seat after installing seat in vehicle.

2 - Backrest

Qty. 2

3 - Cable harness

4 - Screw, self-locking

20 Nm
Replace
Qty. 4
Threaded holes must always be cleaned (e.g. with a thread cutter)

5 - Screw

6 - Support

7 - Seat pan

8 - Spacer, tunnel side only

9 - Fastening strip

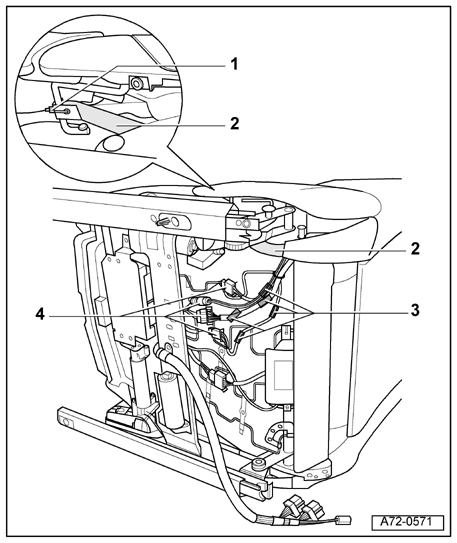

Fig 5: Front Backrest Remove/Install Components (Seats With Seat Memory)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cable tie

Cut cable tie - 1 -.
Remove rubber strap - 2 -.
Disconnect connector - 4 - (Qty. 4).
Remove adhesive strips on securing rails - 3 - (Qty. 5).

2 - Rubber strap

3 - Securing rail

Qty. 5

4 - Connector

Qty. 4
