Drawer, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Special Tool - Engine And Transmission Holder VAS 6095

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Engine and transmission holder VAS 6095

Fig 2: Fixture For Seat Repair VAS 6136

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fixture for seat repair VAS 6136

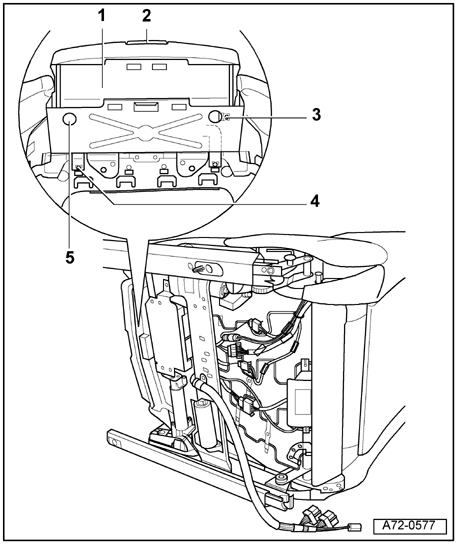

Fig 3: Drawer Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Drawer

Removal:

Remove seat → Front power seats with memory, removing and installing .
Mount the fixture for seat repair VAS 6136 on the engine and transmission holder VAS 6095.
Attach the front seat to the fixture for seat repair VAS 6136.
Pull handle - 2 - and pull out drawer - 1 -.

Insert a screwdriver with inserted bit into opening - 5 - and remove the bolt installed beneath.
Remove bolts - 4 - (2x).
Remove screw - 3 -.
Remove drawer - 1 -.

Installing:

Install drawer - 1 - in reverse order of removal.

2 - Grip

3 - Screw

4 - Screw

Qty. 2

5 - Opening
