Seat, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Identifying Torque Wrench V.A.G. 1332

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Torque wrench V.A.G 1332

NOTE:

The RS sport seat has no side airbag. Therefore, the electrical connection for the side airbag must have a terminal resistance in the wiring harness.
Depending on the version, this terminal resistance is securely connected to the wiring harness, or is designed as a separate connector housing with terminal resistance → Connector housing with terminal resistance for side airbag .

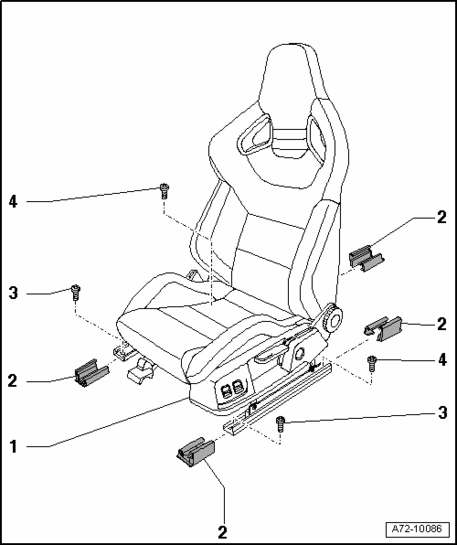

Fig 2: Seat Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front seat

Removing

Push front seat - 1 - fully upward and to the rear.
Remove front bolts - 3 - (Qty. 2).
Move seat forward.
Loosen seatbelt eyelet at outer anchoring point for seat and remove seatbelt from belt guide.

Remove rear bolts - 4 - (Qty. 2).
Tip front seat - 1 - back.
Disconnect electrical harness connectors → Electrical harness connectors, disconnecting .

Installing

Installation is reverse of removal.

2 - Seat rail covers

Right front and left rear are identical
Left front and right rear are identical
Removing and installing → Seat rail cover, removing and installing

3 - Front bolts (2x)

Tightening torque 50 Nm

4 - Rear bolts (2x)

Tightening torque 50 Nm
