General Information

The front final drive 0BM/0C1 is assigned to automatic transmission 0C8.

Allocation. Refer to CODE, TRANSMISSION ALLOCATION, RATIOS AND CAPACITIES .

Location on Front Final Drive

Fig 1: Locating Identification On Front Final Drive

Courtesy of AUDI OF AMERICA, LLC

Front final drive 0BM and 0C1, code letters and manufacture date -arrow-.

Front Final Drive Identification

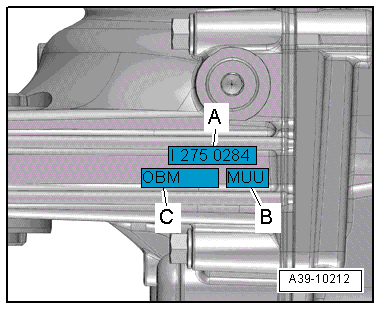

Fig 2: Front Final Drive Identification

Courtesy of AUDI OF AMERICA, LLC

• -A- Front final drive date of manufacture.
• -B- code letters "MUU".
• -C- Front final drive "0BM," with part number.

Additional data depend on the manufacturing.
