Axle Alignment Control Position On Vehicles With Air Suspension, Checking

Axle Alignment Control Position, Checking

-- Connect Vehicle Diagnostic Tester and then perform vehicle-specific entry into Guided Fault Finding and select Go To button "function/component selection", refer to Vehicle Diagnostic Tester, CONNECTING AND SELECTING FUNCTIONS .

Then

-- "Chassis (Repair group 01; 40 - 49)"

-- "34 - Level control (Repair group 01: 43, 44)".

-- "44 - Wheels, tires, vehicle alignment".

-- "KD44 85 - Axle alignment".

Chassis 1BK/2MB

-- Front height dimension: 449 mm

-- Rear height dimension: 465 mm

Height Dimension -x-, Determining

Height dimension -x- is the measurement in mm between center of wheel and lower edge of fender.

-- Measure rim diameter.

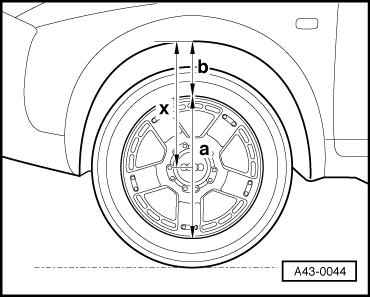

Fig 1: Identifying Height Dimension

Courtesy of AUDI OF AMERICA, LLC

The measured value gives dimension: -a-.

-- Measure from upper rim edge vertically to lower fender edge.

The measured value gives dimension: -b-.

Height dimension x is derived from:

x = a : 2 + b.
