Driver Seat Bracket Overview

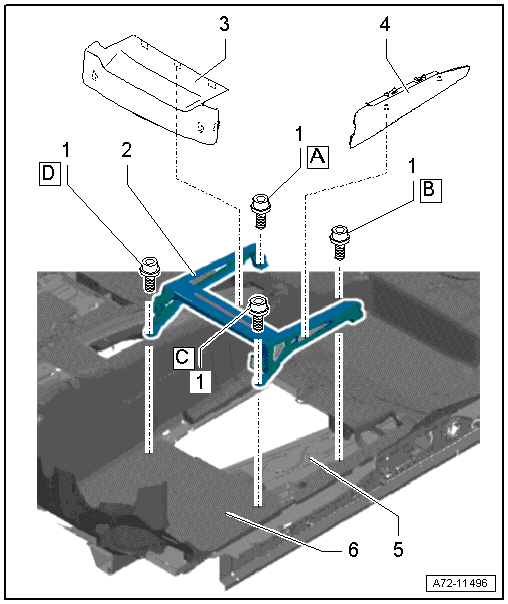

Fig 1: Identifying Driver Seat Bracket Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Screw, Self-Locking
- 45 Nm
- Always replace if removed.
- Clean nut threads before installing new screws.
- Install the bolts in the following sequence -A-, -B-, -C- and -D- and then tighten them in the same sequence.
Driver Seat Console
- Removing and Installing. Refer to DRIVER SEAT CONSOLE, REMOVING AND INSTALLING .
Front Console Trim
- Removing and Installing. Refer to FRONT CONSOLE TRIM, DRIVER SEAT, REMOVING AND INSTALLING .
Left Console Trim
- Removing and Installing. Refer to FRONT CONSOLE TRIM, DRIVER SEAT, REMOVING AND INSTALLING .
Vehicle Floor
Carpet
