Front Console Trim, Driver Seat, Removing And Installing

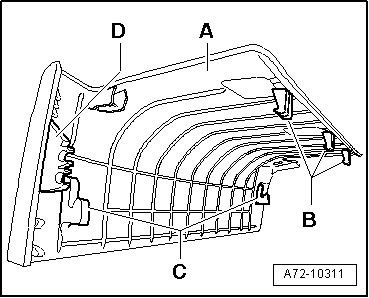

Fig 1: Identifying Front Trim -A- And Trim Catches (Locking Tabs -B -, -C- And -D-)

Courtesy of AUDI OF AMERICA, LLC

-- Carefully raise trim -A- in locking tab area "B". Refer toFig 1. direction of -arrow-.

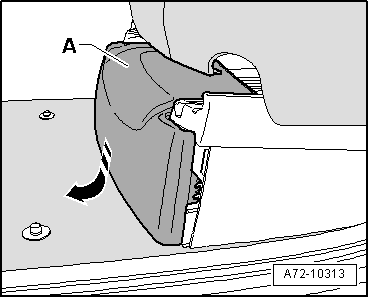

Fig 2: Identifying Front Console Trim

Courtesy of AUDI OF AMERICA, LLC

-- Then press trim -A- in front area down and at the same time, pull it forward direction of -arrow-. In this way, release locking tabs "C" and "D" (Fig 1).

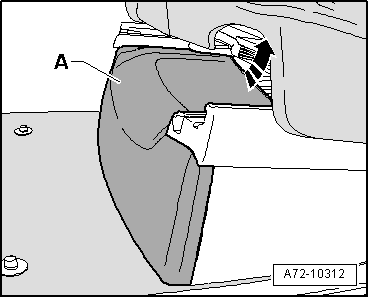

Fig 3: Identifying Front Console Trim

Courtesy of AUDI OF AMERICA, LLC

Installing

Install in reverse order of removal. Observe the following when doing so:

• Ensure all hooks are engaged correctly.
