Suction Jet Pumps: Removing

WARNING: This page is about a different variant/trim than selected.

Follow all safety precautions. Refer to SAFETY PRECAUTIONS .

Follow the guidelines for cleanliness. Refer to CLEAN WORKING CONDITIONS .

-- Position driver's seat as far back and up as possible using the full seat adjustment range.

CAUTION:

Risk of destroying electronic components when disconnecting the battery.

Observe measures for disconnecting battery.

-- Disconnect the battery. Refer to BATTERY .

WARNING:

Danger of fuel entering vehicle interior.

To remove suction jet pumps, fuel tank must be empty.

-- Empty fuel tank. Refer to FUEL TANK, DRAINING .

-- Remove the right seat frame in 2nd row. Refer to SECOND ROW, 2 PASSENGER OVERVIEW .

Fig 1: Cut Floor Covering Along Perforation

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of injury.

Wear safety gloves.

-- Cut the floor covering along the perforation -arrows- on the right side with a carpet knife -1-.

-- Fold the floor covering to the side in the -direction of arrow-.

Fig 2: Identifying Locking Flange Cover - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove nuts -1 to 4- and remove right locking flange cover.

-- Disconnect electrical harness connector -3- at right locking flange.

Fig 3: Identifying Fuel Supply Line -2- And Electrical Harness Connector -3-

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of injury from fuel.

To reduce residual pressure remaining in fuel system, lay a clean cloth around the connector and carefully loosen connector.

-- Disconnect the fuel supply line -2- from the right locking flange.

-- Remove locking ring with Wrench T10202.

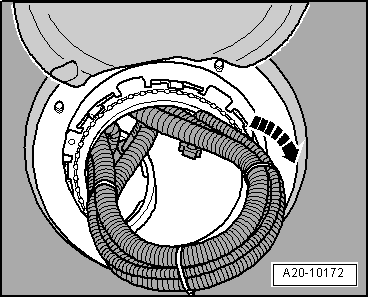

Fig 4: Removing Locking Ring With Wrench T10202

Courtesy of AUDI OF AMERICA, LLC

-- Pull the right locking flange with seal out of fuel tank a bit.

Fig 5: Identifying Electrical Connectors -1 And 2- On Underside Of Right Locking Flange

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connectors -1 and 2- on the underside of the right locking flange.

-- Disconnect fuel line -arrow- by pressing release button.

Fig 6: Identifying Delivery Lines -1 And 4- And Suction Jet Pipe -2-

Courtesy of AUDI OF AMERICA, LLC

-- Grasp in fuel tank opening and remove fuel delivery lines -1 and 4- by pressing releases.

-- Disconnect the suction jet pipe -2- to suction jet pump by pressing release button.

NOTE:

Ignore -3-.

-- Remove 2nd row left seat cushion. Refer to SEAT CUSHION, REMOVING AND INSTALLING .

Fig 7: Cut Floor Covering Along Perforation

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of injury.

Wear safety gloves.

-- Cut the floor covering along the perforation -arrows- on the left side with a carpet knife -1-.

-- Fold the floor covering to the side in the -direction of arrow-.

Fig 8: Identifying Locking Flange Cover - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove nuts -1 to 4- and remove left locking flange cover.

-- Disconnect electrical harness connector -1- at left locking flange.

Fig 9: Identifying Electrical Harness Connector -1- And Vent Line -2-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the vent line -2- by pressing release button.

-- Remove locking ring with Wrench T10202.

Fig 10: Removing Locking Ring With Wrench T10202

Courtesy of AUDI OF AMERICA, LLC

-- Pull left locking flange with fuel filter housing and gasket out of fuel tank slightly.

Fig 11: Identifying Electrical Connector -Arrow- On Underside Of Left Locking Flange

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connector -arrow- on inner side of locking flange.

-- Disconnect fuel lines -1 and 2- from the left locking flange by pressing release button.

Fig 12: Identifying Fuel Lines -1 And 2- From Left Locking Flange

Courtesy of AUDI OF AMERICA, LLC

-- Grasp in fuel tank opening and remove Fuel Level Sensor 2 -G169- through guide in the -direction of arrow 2- while pressing locking tab -arrow 1-.

Fig 13: Identifying Pressing Tab -1-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Fuel level sensor 2 is shown without fuel tank to provide a better illustration.

-- Carefully remove fuel level sensor 2 through fuel tank opening.

-- Grasp in fuel tank opening and remove delivery lines with suction jet pipe from left opening on fuel tank -arrow-.

Fig 14: Identifying Removal Of Delivery Lines With Suction Jet Pipe From Left Opening On Fuel Tank -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove suction jet pumps from guide -arrow 2- by pressing locking tabs at the same time -arrow 1-.

Fig 15: Identifying Tab -1- Remove Suction Jet Pumps

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Suction jet pumps are shown without fuel tank to provide a better illustration.

-- Carefully remove suction jet pumps through fuel tank opening.
