Fuel Tank, Draining

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Wrench T10202
Fuel Extracting Device VAS 5190

Procedure

Follow all safety precautions. Refer to SAFETY PRECAUTIONS .

Follow the guidelines for cleanliness. Refer to CLEAN WORKING CONDITIONS .

-- Open the fuel filler door.

CAUTION:

Risk of destroying electronic components when disconnecting the battery.

Observe measures for disconnecting battery.

-- Disconnect the battery. Refer to BATTERY .

WARNING:

Risk of explosion due to electrostatic charge.

Secure the fuel extracting device Fuel Extracting Device VAS 5190 ground wire to a bare area of the chassis.

-- Remove the cone piece -2- from the shaft piece -1- on the Fuel Extracting Device VAS 5190.

Fig 1: Disconnecting Tapered Adapter From Shaft End Of VAS 5190

Courtesy of AUDI OF AMERICA, LLC

-- Using insulating tape, apply a mark -arrow- on hose at length -a- = 1775 mm from the end of the suction hose.

-- Remove the fuel cap from the fuel filler tube.

-- Install the adapter -1- for the Fuel Extracting Device VAS 5190 on the fuel tank filler tube.

Fig 2: Identifying Fuel Siphoning Device VAS 5190 Installed Onto Fuel Filler Tube Of Fuel Tank

Courtesy of AUDI OF AMERICA, LLC

-- Push the suction hose as far into the fuel tank until the mark applied earlier -arrow- is positioned on shaft piece.

NOTE:

If using a siphoning device without shaft piece, proceed principally in the same manner.

In this case, apply a mark -arrow- using insulating tape on hose at length -a- = 1710 mm from end of suction hose. The suction hose is inserted correctly when the marking applied earlier aligns with the lip of the fuel filler neck.

Fig 3: Identifying Suction Hose Placed Far Into Fuel Tank Until Mark Applied Earlier Meets Fuel Filler Tube

Courtesy of AUDI OF AMERICA, LLC

If the hose can only be inserted with difficulty, coat it thinly with engine oil. Never use lubricants containing silicon.

-- Empty fuel tank as much as possible via fuel filler tube.

-- Carefully pull out the suction hose.

-- Remove 2nd row left seat cushion. Refer to SEAT CUSHION, REMOVING AND INSTALLING .

WARNING:

Risk of injury.

Wear safety gloves.

-- Cut the floor covering along the perforation -arrows- on the left side with a carpet knife -1-.

Fig 4: Cut Floor Covering Along Perforation

Courtesy of AUDI OF AMERICA, LLC

-- Fold the floor covering to the side in the -direction of arrow-.

Fig 5: Identifying Locking Flange Cover - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove nuts -1 to 4- and remove left locking flange cover.

-- Disconnect electrical harness connector -1- at left locking flange.

Fig 6: Identifying Electrical Harness Connector -1- And Vent Line -2-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the vent line -2- by pressing release button.

-- Remove locking ring using the Wrench T10202.

Fig 7: Removing Locking Ring With Wrench T10202

Courtesy of AUDI OF AMERICA, LLC

-- Pull left locking flange with fuel filter housing and gasket out of fuel tank slightly.

-- Disconnect electrical connector -arrow- on inner side of locking flange.

Fig 8: Identifying Electrical Connector -Arrow- On Underside Of Left Locking Flange

Courtesy of AUDI OF AMERICA, LLC

-- Lay aside left locking flange with connected fuel lines.

-- Extract the fuel in the left fuel tank chamber through the opening using the Fuel Extracting Device VAS 5190.

Assemble in reverse order of disassembling. Note the following:

Tightening specification, refer to FUEL DELIVERY UNIT AND FUEL LEVEL SENSOR -G- OVERVIEW .

NOTE:

Replace seal.

-- Connect electrical connector -arrow- on underside of left locking flange.

-- Install the new locking flange seal dry.

-- Bring the left locking flange into the installation position.

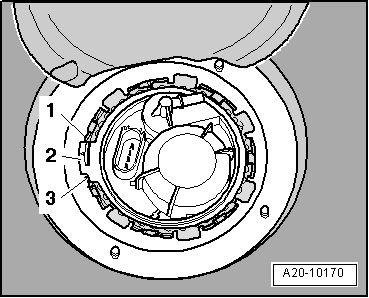

The tab -2- on left locking flange faces toward the arrow marking and must lie between tabs -1 and 3- on fuel tank.

Fig 9: Identifying Tab -2- On Left Locking Flange Aligned Between Tabs -1 And 3- On Fuel Tank
Courtesy of AUDI OF AMERICA, LLC

-- Install locking flange cover.

-- Install the frame into the floor covering. Refer to FRONT FLOOR COVERING, REMOVING AND INSTALLING

-- Install 2nd row left seat cushion. Refer to SEAT CUSHION, REMOVING AND INSTALLING .

-- Be sure to follow the procedure for connecting the battery and afterwards. Refer to BATTERY .
