Fuel Level Sensor -G-: Installing

• Tightening specification, refer to FUEL DELIVERY UNIT AND Fuel Level Sensor -G- OVERVIEW .

Install in reverse order of removal. Note the following:

-- Insert Fuel Level Sensor -G- into guide until it engages audibly.

-- Connect electrical connectors -1 and 2- on the underside of right locking flange.

Fig 1: Identifying Electrical Connectors -1 And 2- On Underside Of Right Locking Flange

Courtesy of AUDI OF AMERICA, LLC

-- Install the new locking flange seal dry.

-- Bring the right locking flange into the installation position.

• Tab -2- on the right locking flange faces toward arrow marking and must lie between tabs -1 and 2- on fuel tank.

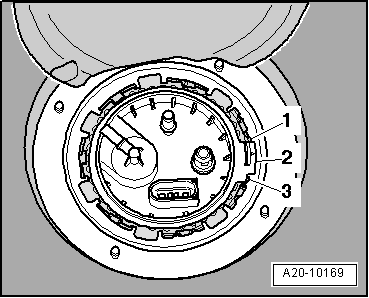

  Fig 2: Identifying Tab -2- On Right Locking Flange Aligned Between Tabs -1 And 3- On Fuel Tank

  Courtesy of AUDI OF AMERICA, LLC

-- Install locking flange cover.

-- Install the frame into the floor covering. Refer to FRONT FLOOR COVERING, REMOVING AND INSTALLING .

-- Install right seat frame in 2nd row. Refer to SECOND ROW, 2 PASSENGER OVERVIEW .

-- Be sure to follow the procedure for connecting the battery and afterwards. Refer to BATTERY .
