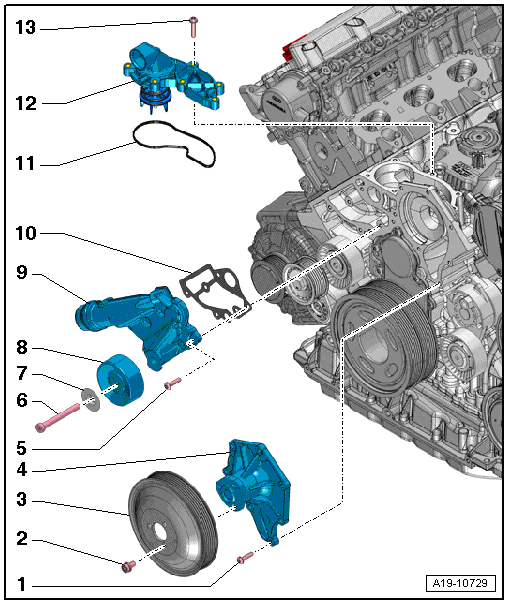

Overview - Coolant Pump And Thermostat
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 9 Nm
- Bolt
- 20 Nm
- Coolant Pump Ribbed Belt Pulley
- Coolant Pump
- With seal
- Removing and installing. Refer to COOLANT PUMP, REMOVING AND INSTALLING
- Bolt
- 9 Nm
- Bolt
- Tightening specification -item 2- OVERVIEW - SUPERCHARGER RIBBED BELT DRIVE .
- Washer
- Idler Roller for Ribbed Belt
- Connecting Piece
- For coolant hose
- Seal
- Replace
- Seal
- Coolant Thermostat
- Removing and installing. Refer to COOLANT THERMOSTAT, REMOVING AND INSTALLING
- Checking. Refer to COOLANT THERMOSTAT, CHECKING NOTE:
When removing and installing the coolant thermostat, make sure that the thermostat needle is installed correctly (conical end is inserted in the coolant thermostat wax thermostatic element). If necessary, push the thermostat needle all the way into the wax thermostatic element.
- Bolt
- 9 Nm
