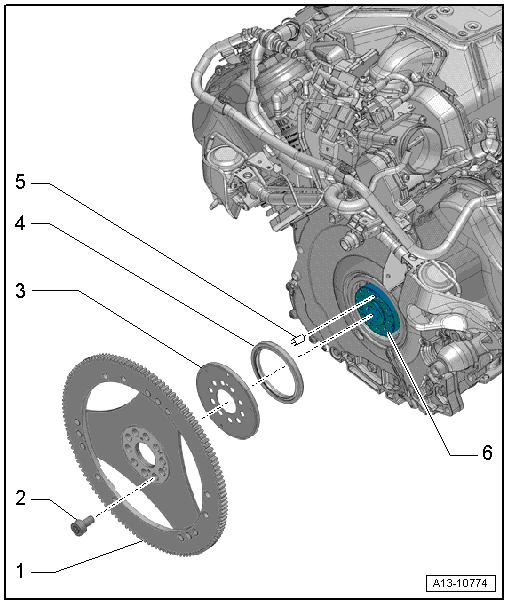

Overview - Drive Plate
WARNING: This page is about a different variant/trim than selected.
NOTE:
For assembly work, secure the engine on the Engine And Transmission Holder VAS6095. Refer to ENGINE, SECURING ON ENGINE AND TRANSMISSION HOLDER .
- Drive Plate
- Check the holes in the torque converter for cracks and wear grooves.
- Removing and installing. Refer to DRIVE PLATE, REMOVING AND INSTALLING
- Bolt
- 60 Nm + 90° turn
- Replace
- Sensor Wheel
- For Engine Speed Sensor -G28-
- Shaft Seal
- For the crankshaft on the transmission side
- Replacing. Refer to CRANKSHAFT SEAL, REMOVING AND INSTALLING, TRANSMISSION SIDE
- Alignment Pin
- Crankshaft
