Seat Belt (3RD Row), Removing And Installing: Installing
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

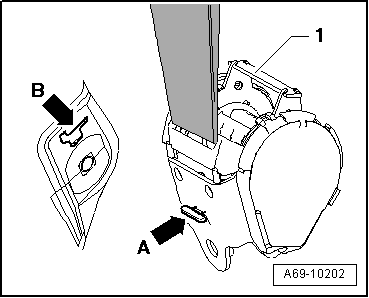

-- Engage hook -arrow A- from belt roller -1- in body cut-out -arrow B-.
-- Tighten belt roller screw to the specification.
If seat belt is being removed for accident repairs, replace screw.
-- Install the seat belt relay to the body. Place spacer ring. Refer to -Item 9- SEAT BELT (3RD ROW) OVERVIEW between belt relay and body.
- If belt relay is being removed for accident repairs, replace screw.
- Belt relay must swing by itself in carrier direction after tightening screw.
Further installation is performed in reverse sequence of removal, but observe the following:
-- Ensure seat belt is not obstructed by wires, insulation, etc.
Tightening specifications. Refer to SEAT BELT (3RD ROW) OVERVIEW .
