Rear Belt Guide (2ND Row), Removing And Installing

Removing

-- Remove the C-pillar trim from the body. Refer to C-PILLAR TRIM OVERVIEW .

-- Lay aside the C-pillar trim with the belt webbing threaded through.

Vehicles with Air Duct in C-Pillar

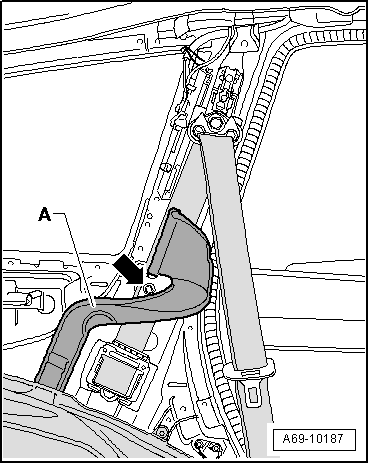

Fig 1: Air Duct -A-

Courtesy of AUDI OF AMERICA, LLC

-- Remove screw -arrow- at belt guide.

-- Remove air duct -A-.

Procedure for All Vehicles

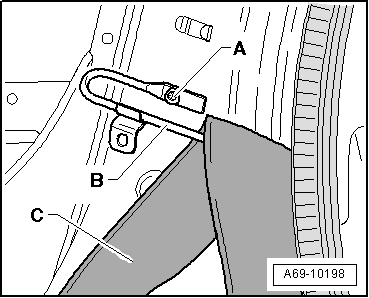

Fig 2: Belt Webbing -C- Sideways From Belt Guide -B-

Courtesy of AUDI OF AMERICA, LLC

-- Remove belt webbing -C- sideways from belt guide -B-.

-- Remove screw -A- and remove belt guide.

Install in reverse order of removal.

• Screw -A- tightening specification: 5 Nm.
