Outer Seat Belt Latch Securing Point (3RD Row), Removing And Installing: Removing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the 3rd row bench seat. Refer to THIRD ROW SEAT OVERVIEW .

-- Remove the screw -1- and remove the seat belt latch.

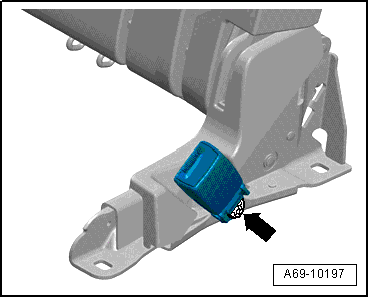

Fig 1: 3rd Outer Row Seat Belt Latch Securing Point
GWWA69-10197Courtesy of AUDI OF AMERICA, LLC
