Third Row Seat Overview

-- Position screws -1- in sequence -A-, -B-, -C- and -D- and tighten to the specification in same sequence.

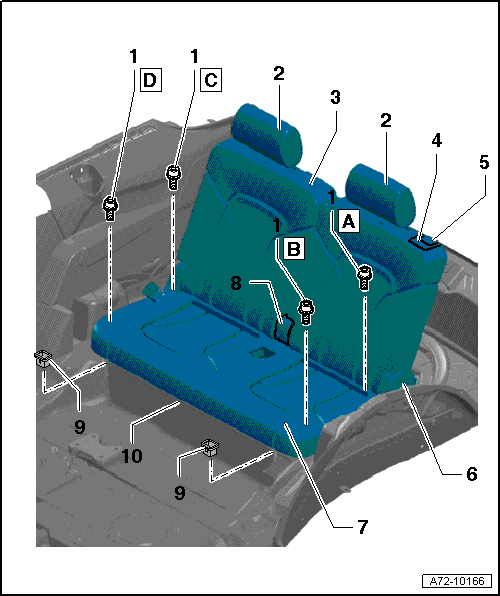

Fig 1: Identifying 3rd Seat Row Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Screw, Self-Locking
   • 50 Nm
   • Always replace if removed.
   • Clean nut threads before installing new screws.
   • Observe installation sequence.
2. Headrest
   • Headrest. Refer to HEADREST OVERVIEW .
   • Removing and Installing. Refer to HEADREST, REMOVING AND INSTALLING .
3. Bench Seat
   • Removing and Installing. Refer to SEAT BENCH, REMOVING AND INSTALLING .
4. Trim
   • Clipped in.
   • Removing and Installing. Refer to TRIM, REMOVING AND INSTALLING .
5. Handle
   • Clipped on.
   • Removing and Installing. Refer to HANDLE, REMOVING AND INSTALLING .
6. Cover
   • Removing and Installing. Refer to COVER, REMOVING AND INSTALLING .
7. Seat Cushion
   • Removing and Installing. Refer to SEAT CUSHION, REMOVING AND INSTALLING .
8. Center Bearing Cover
   • Clipped on.
   • Removing and Installing. Refer to CENTER BEARING COVER, REMOVING AND INSTALLING .
9. Mounting Grommet
   • Removing and Installing. Refer to MOUNTING GROMMET, REMOVING AND INSTALLING .
   • Must be replaced each time seat cushion is removed.
10. Carpet
