Center Three-Point Seat Belt (2ND Row), Removing And Installing: Installing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Observe the following when doing so:

WARNING:

Make sure the backrest is locked (zero position) or it could tip forward accidentally.

-- When installing seat belt, engage belt roller hooks in backrest cut-out.

NOTE:

Replace seat belt cover.

Allocate the pop rivets using the Parts Catalog.

-- Secure the pop rivets on the seat belt cover with the Pop Rivet PliersVAG1753A. Align the holes in cover with the holes in the backrest. Begin riveting from center outward in a diagonal sequence.

-- Install cover and upholstery from backrest. Refer to BACKREST COVER AND UPHOLSTERY, REMOVING AND INSTALLING .

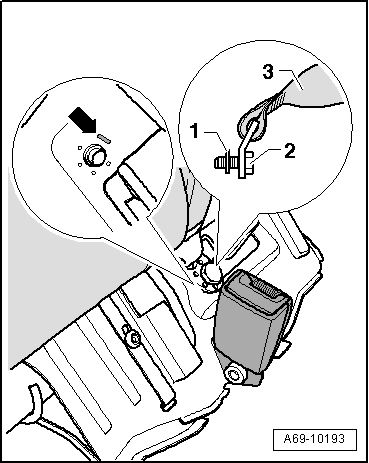

-- Insert screw -2- in belt anchor/belt webbing -3- and then install rubber disc -1- on screw.

Fig 1: Belt Webbing -3-

Courtesy of AUDI OF AMERICA, LLC

-- Secure belt anchor/belt webbing with screw -2- to seat frame. Anchor depression must face toward seat frame ridge -arrow-.

Tightening specifications. Refer to CENTER THE THREE-POINT SEAT BELT (2ND ROW) OVERVIEW .
