Battery Interrupt Igniter -N253-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn on the ignition.
-- Disconnect the ground cable from the battery with the ignition on. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the front screws on the console on the left front seat. Pivot left front seat with console back. Refer to DRIVER SEAT BRACKET OVERVIEW .
-- Remove screw -1- and remove air duct -2-.
-- Remove cover over Battery Interrupt Igniter -N253-.
WARNING:
Before handling airbag units (for example, disconnecting electrical connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

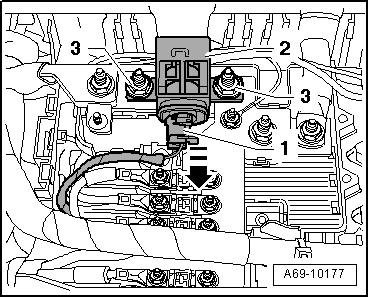

Remove connector -1- in direction of -arrow-.
-- Remove nuts -3-.
-- Remove Battery Interrupt Igniter -N253- -2- from bracket.
