Knock Sensor 1 -G61- / Knock Sensor 2 -G66-

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Removing Knock Sensor (KS) 1 -G61-

NOTE:

KS 1 -- is located in the front of the cylinder head on the right side.

-- Disconnect the connector -2- from KS 1 --.

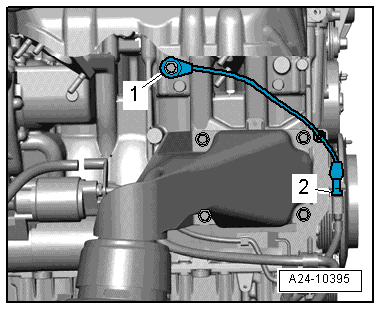

Fig 1: Locating Knock Sensor (KS) 1 -G61-

Courtesy of AUDI OF AMERICA, LLC

-- Remove KS 1 -- -1-.

Removing Knock Sensor (KS) 2 -G66-

NOTE:

KS 2 -- is located inside the cylinder head on the left side.

-- Drain the engine coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Disconnect coolant hose from -1- from connecting pieces.

Fig 2: Identifying Coolant Hose From -1- From Connecting Pieces

Courtesy of AUDI OF AMERICA, LLC

-- Remove KS 2 -- -arrow-.

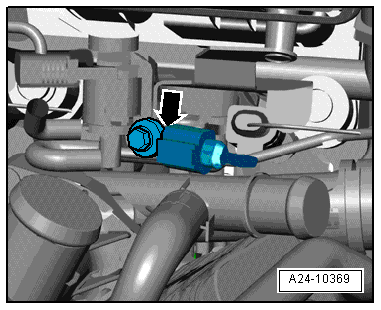

Fig 3: Locating Knock Sensor (KS) 2 -G66-

Courtesy of AUDI OF AMERICA, LLC

Installing

-- Install in reverse order of removal.

Tightening specification, refer to IGNITION OVERVIEW

The following work is necessary only when installing KS 2 -- :

-- Install the coolant hose.

-- Fill with engine coolant. Refer to COOLANT, DRAINING AND FILLING .
