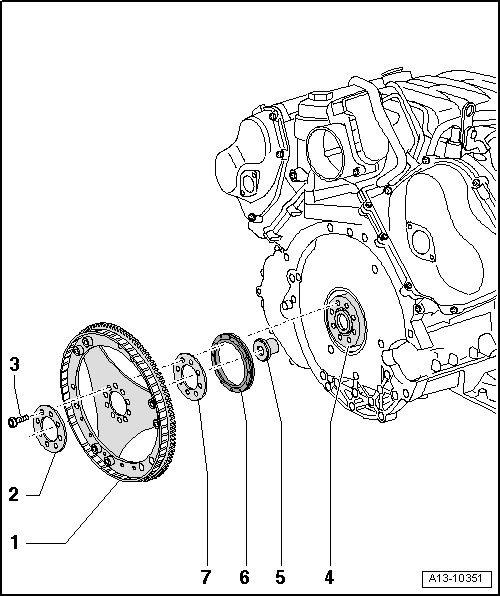

Drive Plate Overview
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Drive Plate
- Removal and installation, refer to DRIVE PLATE
- Mark for re-installation
- Washer
- 3.4 mm thick
- Mark for re-installation
- Bolt
- 60 Nm plus an additional 90° turn
- Replace
- Crankshaft
- Centering Bushing
- For torque converter
- Check availability
- Shaft Seal
- For the crankshaft, transmission side
- Replacing, refer to CRANKSHAFT SEAL, TRANSMISSION SIDE .
- Spacer Washer
- 1.5 mm thick
- Mark for re-installation
