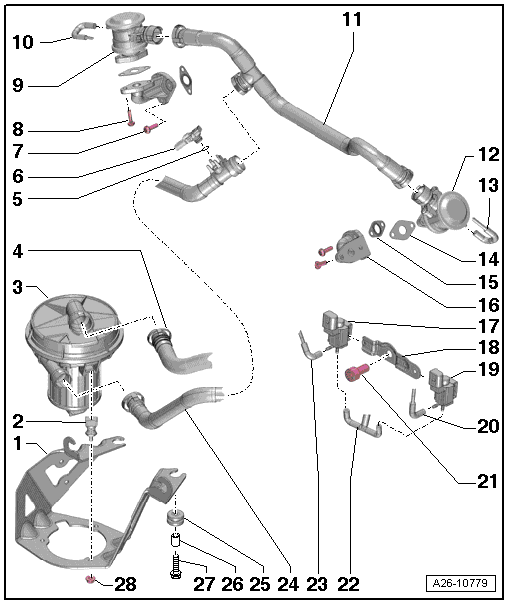

Secondary Air Injection System Version 2 Overview
WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- For Secondary Air Injection (AIR) pump motor -V101-
- Bonded Rubber Bushing
- Secondary Air Injection (AIR) Pump Motor -V101-
- Component location: At front right in engine compartment below the longitudinal member
- Removal and installation, refer to SECONDARY AIR INJECTION PUMP
- Check in "Guided Fault-Finding" operating mode.
- Hose
- From air filter housing
- O-ring
- Replace
- AIR Sensor 1 -G609-
- Removal and installation, refer to FUEL LEVEL SENSOR 1
- Bolt
- Tightening specification: 9 Nm
- Bolt
- Tightening specification: 9 Nm
- Right AIR Combination Valve
- Component location: On the front of the right cylinder head
- Checking, refer to SECONDARY AIR INJECTION COMBINATION VALVES, VERSION 2, CHECKING FOR FUNCTION AND LEAKS
- Removal and installation, refer to SECONDARY AIR INJECTION RIGHT COMBINATION VALVE
- Vacuum Hose
- To the right secondary air injection combination valve
- Hose
- To Secondary Air Injection (AIR) combi-valves
- Left AIR Combination Valve
- Component location: On the front of the left cylinder head
- Checking, refer to SECONDARY AIR INJECTION COMBINATION VALVES, VERSION 2, CHECKING FOR FUNCTION AND LEAKS
- Removal and installation, refer to SECONDARY AIR INJECTION LEFT COMBINATION VALVE
- Vacuum Hose
- To the left secondary air injection combination valve
- Gasket
- Replace
- Gasket
- Replace
- Flange
- To cylinder head
- AIR Solenoid Valve -N112-
- Component location, refer to Fig 3
- Bracket
- For the secondary air injection (AIR) solenoid valve
- AIR Solenoid Valve 2 -N320-
- Component location, refer to Fig 3
- Vacuum Hose
- From the AIR solenoid valve 2 --
- Bolt
- Tightening specification: 9 Nm
- Vacuum Hose
- With a T-piece
- Vacuum supply from intake manifold
- Vacuum Hose
- From the AIR solenoid valve -N112-
- Hose
- From AIR pump motor -V101- to secondary air injection combi-valves
- Grommet
- Bushing
- Bolt
- Tightening specification: 9 Nm
- Nut
- Tightening specification: 9 Nm
- In E-box, plenum chamber.
4 - AIR pump relay -J299-
NOTE:
The AIR pump fuse -S130- is located on a separate bracket.

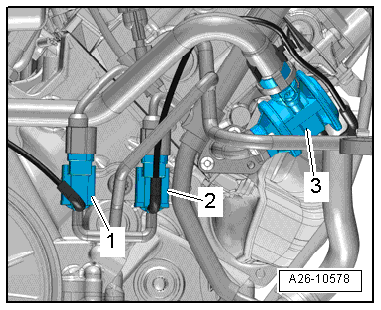

- On the front of the left cylinder head.
- AIR solenoid valve -N112-
- AIR solenoid valve 2 -N320-
