Engine And Transmission, Separating

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Bracket 30-211 A
Scissor Lift Table VAS 6131
Support Set VAS 6131/10 and Supplementary Set VAS 6131/12 and VAS 6131/13
Counterhold Tool T10172 with T10172/6
Adapter T40058

Procedure

Engine/transmission unit removed and attached to VAS 6131.

NOTE:

All cable ties opened or cut during engine removal must be reinstalled at the same locations during installation.

-- Equip VAS 6131 with VAS 6131/10 and additional parts from VAS 6131/12 and VAS 6131/13 as follows:

Fig 1: Identifying Scissor Lift Platform VAS 6131

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The other attachments remain unchanged.

Platform coordinates	Parts from Support SetVAS 6131/10, Supplementary SetVAS 6131/12 and VAS 6131/13
E1	/13-7
C10	/10-1	/10-4	/10-5	/13-2
E10	/10-1	/10-4	/10-5	/13-2
G10	/10-1	/12-2	/10-5	/13-3

-- Tighten joint support VAS 6131/13-7 at front of engine in threaded holes.

Fig 2: Identifying Joint Support VAS6131/13-7 At Front Of Engine

Courtesy of AUDI OF AMERICA, LLC

-- Secure joint support VAS 6131/13-7 to scissor lift table.

-- Attach the support elements from the VAS 6131/10 and VAS 6131/13 at the front under the transmission ATF oil pan as illustrated.

Fig 3: Identifying Support Elements From VAS6131/10 And VAS6131/13 At Front Under Transmission ATF Oil Pan

Courtesy of AUDI OF AMERICA, LLC

-- Prepare the support elements from the VAS 6131/10, VAS 6131/12 and VAS 6131/13 to support the driveshaft as illustrated.

Fig 4: Identifying Support Elements VAS6131/12 And VAS6131/13 To Support Driveshaft

Courtesy of AUDI OF AMERICA, LLC

-- Free up electrical wires to oxygen sensors.

-- Remove bolts -arrows- at left main catalytic converter bracket.

Fig 5: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

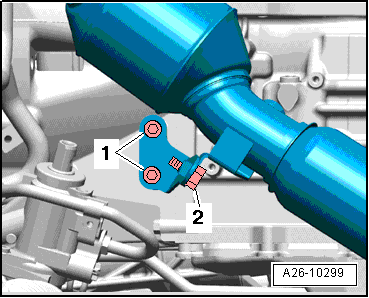

-- Remove bolt -2- at left primary catalytic converter strap.

Fig 6: Identifying Bolt At Left Primary Catalytic Converter Strap

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -1-.

-- Remove nuts -1 to 3-.

Fig 7: Identifying Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Remove left front and main catalytic converters.

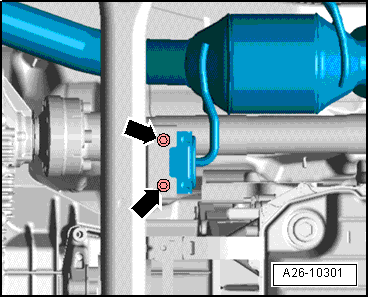

-- Remove bolt -arrows- at right main catalytic converter bracket.

Fig 8: Identifying Bolt At Right Main Catalytic Converter Bracket

Courtesy of AUDI OF AMERICA, LLC

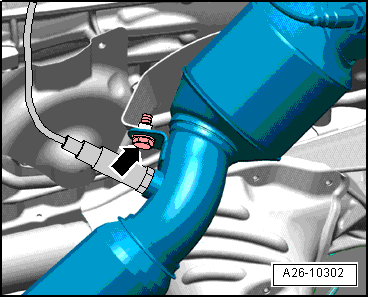

-- Remove bolt -arrow- at right primary catalytic converter strap.

Fig 9: Identifying Bolt At Right Primary Catalytic Converter Strap

Courtesy of AUDI OF AMERICA, LLC

-- Remove nuts -1 to 3-.

Fig 10: Identifying Nuts, Securing Bolts, And ATF Line

Courtesy of AUDI OF AMERICA, LLC

-- Remove right primary and main catalytic converters.

-- Remove bolts -arrows- at transfer case/front driveshaft connection.

Fig 11: Identifying Driveshaft Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

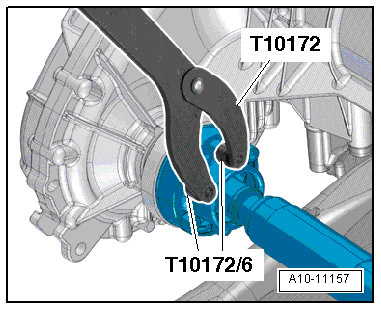

-- Counterhold with the T10172 with T10172/6.

Fig 12: Counterholding With T10172 And T10172/6

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Place a rag under separating point to catch escaping hydraulic fluid.

-- Remove bolts -1- and nut -2- and remove power steering supply pipe.

Fig 13: Identifying Bolts And Nut For Power Steering Supply Line

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolts -1 to 4-.

Fig 14: Identifying Bolts And Coolant Hoses

Courtesy of AUDI OF AMERICA, LLC

-- Remove coolant hoses -arrows-.

-- Remove both left rear coolant pipes.

-- Remove bolts -1- and -2- and remove right rear coolant pipe.

Fig 15: Identifying Nut And Bolt On Rear Right Coolant Pipe

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Disregard -arrow-.

NOTE:

Place a cloth under separation point to catch escaping ATF.

Observe the rules of cleanliness for working on automatic transmissions. Refer to INFORMATION ON 6-SPEED AUTOMATIC TRANSMISSION 09D .

-- Remove bolts -1- and -2- and remove ATF lines from transmission.

-- Remove bolt -arrow-.

Fig 16: Identifying Bolt In Front Of Right Side Of Long Member

Courtesy of AUDI OF AMERICA, LLC

-- Leave ATF lines in installation location.

-- Remove heat shield -arrows-.

Fig 17: Identifying Heat Shield Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Free up electrical wiring below.

-- Disconnect electrical connector -arrow- to Engine Speed (RPM) Sensor -G28-.

Fig 18: Locating Engine Speed (RPM) Sensor -G28- Electrical Connector

Courtesy of AUDI OF AMERICA, LLC

-- Remove electrical connector from bracket and free up electrical wiring.

-- Remove starter bolts -1- and -2-.

Fig 19: Identifying Starter Bolts -1 To 2-, B+ Wire -3-, And Electrical Connector -4-

Courtesy of AUDI OF AMERICA, LLC

-- Swing starter slightly towards engine.

-- Separate the electrical connector -4-.

-- Remove B+ wire -3-.

-- Remove the starter.

-- Insert the T40058 guide pins as follows:

Fig 20: Inserting T40058 Guide Pin

Courtesy of AUDI OF AMERICA, LLC

Small diameter -arrow 1- points to engine.
Large diameter -arrow 2- points to socket.

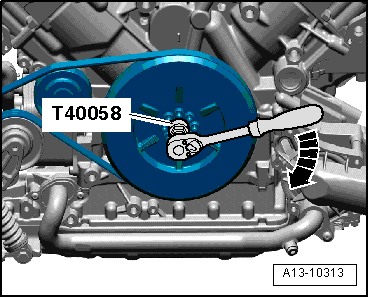

-- To loosen torque converter bolts, counterhold crankshaft using T40058.

Fig 21: Locating Torque Converter Bolts And Adapter T40058 To Counterhold Crankshaft

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Only turn the crankshaft in the direction of engine rotation -arrow-.

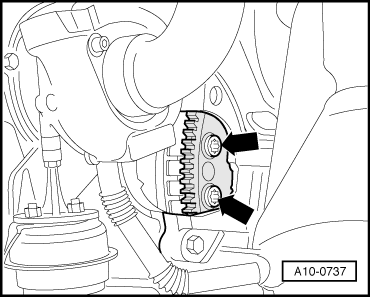

-- Remove two torque converter bolts that are located close to each other -arrows-.

Fig 22: Identifying Two Torque Converter Bolts Located Close To Each Other -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Rotate the crankshaft approximately 110° in the direction of engine rotation and remove the next pair of bolts.

-- Rotate the crankshaft again approximately 110° in the direction of engine rotation and remove the next pair of bolts.

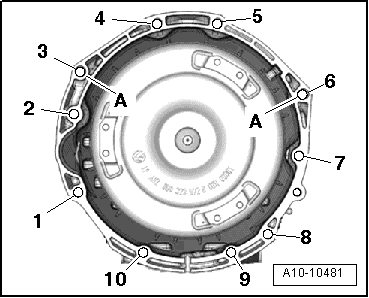

-- Remove engine/transmission connecting bolts -3 to 10-.

Fig 23: Identifying Alignment Sleeves -A- And Engine/Transmission Connecting Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Press transmission off of engine while press torque converter off of drive plate -arrow-.

Fig 24: Press Transmission Off Engine While Pressing Torque Converter Off Drive Plate -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Loosen clamping screws -1- on sides of scissor lift table VAS 6131 and then pull rear table section with transmission back slightly.

Fig 25: Identifying Separation Of Engine And Transmission

Courtesy of AUDI OF AMERICA, LLC

-- Secure torque converter in transmission with 30-211 A to prevent it from falling down.

Fig 26: Identifying Bracket -30-211A- Attached To Secure Torque Converter

Courtesy of AUDI OF AMERICA, LLC
