Upper Oil Pan: Removing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

The engine is removed and secured to the engine and transmission holder. Refer to ENGINE, SECURING TO ENGINE AND TRANSMISSION HOLDER .
Engine oil drained. Refer to Standard Maintenance Service .

-- Remove drive plate. Refer to DRIVE PLATE .

-- Remove left and right timing chain covers. Refer to LEFT AND RIGHT TIMING CHAIN COVERS .

-- Remove the intake manifold. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .

-- Remove oil filter housing. Refer to OIL FILTER HOUSING .

-- Remove lower timing chain cover. Refer to LOWER TIMING CHAIN COVER .

-- Remove the ribbed belt. Refer to RIBBED BELT .

-- Remove the bolts -arrows-.

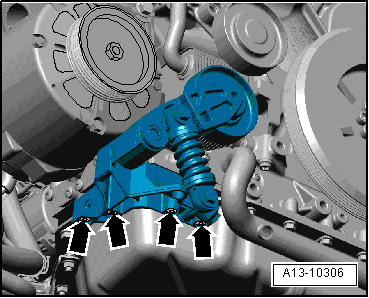

Fig 1: Identifying Bolts & Ribbed Belt Tensioner At Upper Part Of Oil Pan

Courtesy of AUDI OF AMERICA, LLC

-- Remove ribbed belt tensioner from upper section of oil pan.

-- Remove bolt -3- and remove coolant pipe bracket.

Fig 2: Identifying Terminal 30/B+, Bolt, Coolant Pipes, And Electrical Connector

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Place a cloth under separation point to catch escaping coolant.

-- Remove coolant pipes -2 and 4- from generator.

-- Disconnect electrical connector -5- at generator.

-- Remove terminal 30/B+ -1-.

-- Remove the bolts -arrows-.

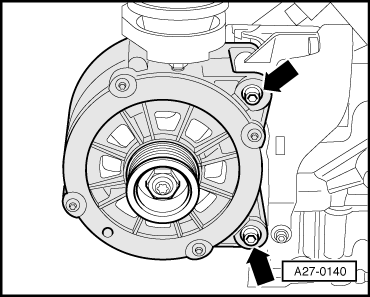

Fig 3: Locating Generator Mounting Bolts

Courtesy of AUDI OF AMERICA, LLC

NOTE:

If generator is stuck in its bracket, screw in mounting bolt again up to 2 rotations.

Carefully tap the bolt heads with the flat side of a hammer to loosen the threaded sleeves for the generator mount.

-- Remove generator.

-- Remove bolts -arrows- and remove air generator bracket.

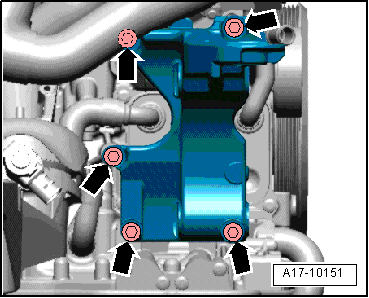

Fig 4: Locating Generator Bracket Mounting Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

Fig 5: Locating Front Coolant Pipe And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove front coolant pipe from engine and from coolant pump.

-- Disconnect electrical connector -2- at oil level thermal sensor -G266-.

Fig 6: Locating Lower Section of Oil Pan Bolts And Oil Level Thermal Sensor G266

Courtesy of AUDI OF AMERICA, LLC

-- Place the VAG 1782 under the engine.

NOTE:

There is still a residual amount of oil in lower section of oil pan.

-- Unbolt oil pan (lower section) -1- and pry out carefully.

-- Remove oil pump. Refer to OIL PUMP .

-- Remove bolts -1 to 7- for upper section of oil pan.

Fig 7: Removing/Installing Bolts For/To Upper Section Of Oil Pan

Courtesy of AUDI OF AMERICA, LLC

-- Press upper section of oil pan from alignment pins of cylinder block.
