Oil Pump: Installing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Tightening specifications, refer to OIL PUMP AND LOWER OIL PAN OVERVIEW .

NOTE:

Replace seals and O-rings.

-- Check whether the 2 alignment bushings are present in cylinder block, install if necessary.

-- Tighten oil pump -arrows-.

-- Unlock VAS 6226 and let driveshaft -1- glide into oil pump.

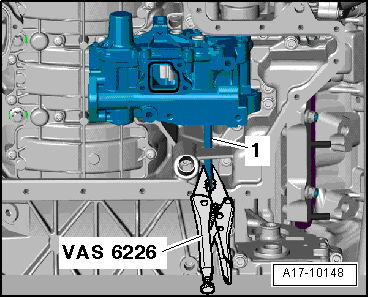

Fig 1: Pressing Back Drive Shaft For Oil Pump Against Spring Force And Clamping Tightly Using Long-Nose Gripping Pliers VAS 6226

Courtesy of AUDI OF AMERICA, LLC

-- Check whether driveshaft is friction locked to oil pump. To do so, reach into intake opening -arrow- of oil pump and try to rotate oil pump gears.

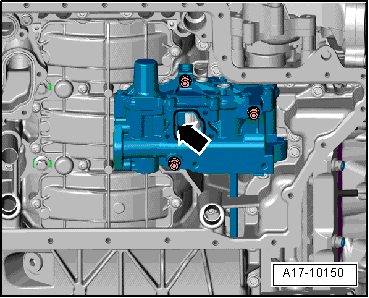

Fig 2: Checking Whether Drive Shaft Is Friction Locked To Oil Pump

Courtesy of AUDI OF AMERICA, LLC

Toothed gears must not be able to be rotated.

The rest of the installation is in reverse order of removal, note the following:

-- Install coolant pump. Refer to COOLANT PUMP .

-- Install lower oil pan. Refer to INSTALLING .

-- Fill the engine oil and check the oil level. Refer to Standard Maintenance Service .

-- Fill with coolant. Refer to COOLING SYSTEM, DRAINING AND FILLING .
