Transmission, Removal

WARNING: This page is about a different car, the 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Pry Lever80-200
Engine Support Bridge10-222A
Engine Support - Bracket w/Spindle and hook10-222A/10
Engine Support Bridge - Engine Support 1910-222A/19
Bracket - Multiple Use30-211A
Transmission Support3282
Transmission Support - Mounting Plate 493282/49
Engine/Gearbox JackVAG1383A
Engine Bung SetVAS6122
Crankshaft SocketT40058
Engine Support - Basic SetT40091
Engine Support - Supplement KitT40093A

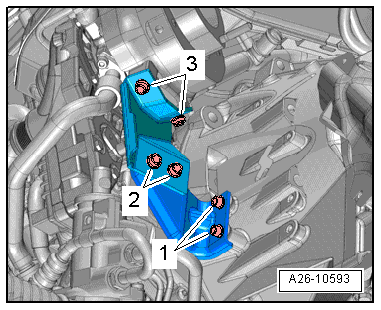

2 threaded spindles from the Lifting Tackle3033

Fig 1: Identifying Lifting Tackle 3033
Courtesy of AUDI OF AMERICA, LLC

Procedure

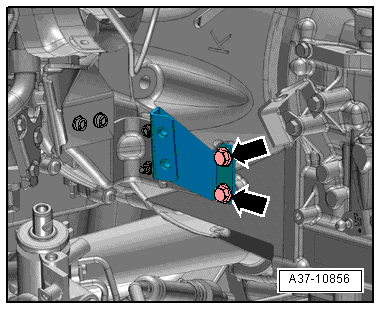

Fig 2: Bolts Location

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Refer to GENERAL REPAIR INFORMATION .

Refer to TRANSMISSION, CLEAN WORKING CONDITIONS .

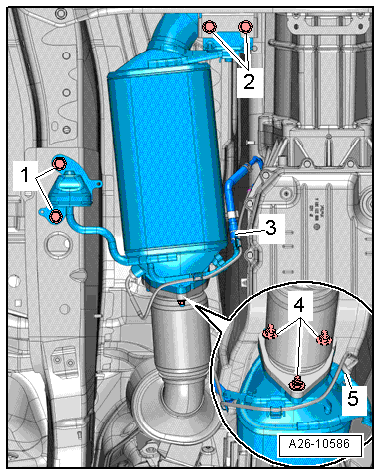

-- Remove the left and right particulate filter. Refer to PARTICULATE FILTER, REMOVING AND INSTALLING .

-- Remove the left and right catalytic converters. Refer to CATALYTIC CONVERTERS, REMOVING AND INSTALLING .

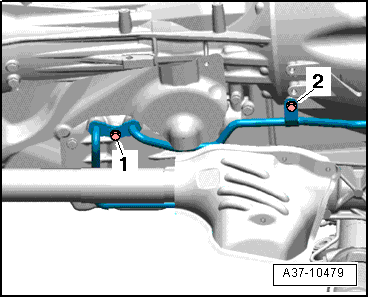

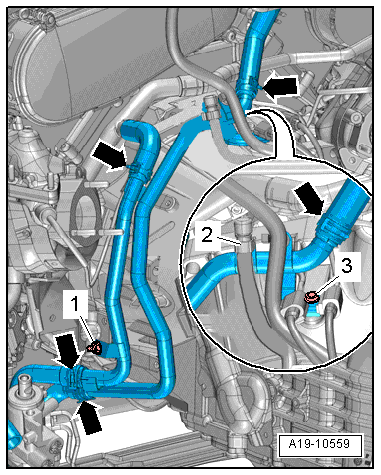

Fig 3: Removing Left Rear Coolant Lines

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left rear coolant lines. Refer to LEFT COOLANT PIPE, REMOVING AND INSTALLING .

Fig 4: Removing Air Filter Housings

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right air filter housings. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

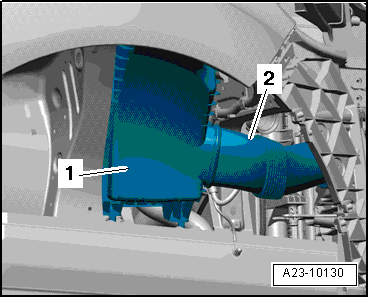

Fig 5: Identifying Air Filter Housing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the generator. Refer to GENERATOR, REMOVING AND INSTALLING .

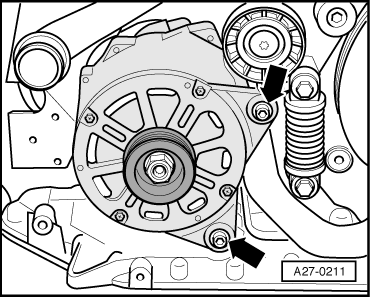

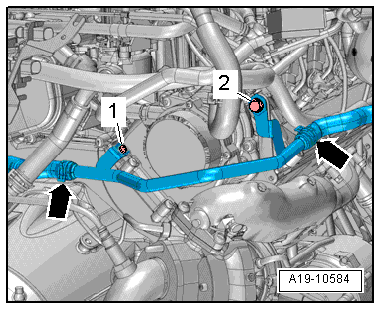

Fig 6: Generator And Mounting Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolt -1-. Remove the bolt -2- and nut.

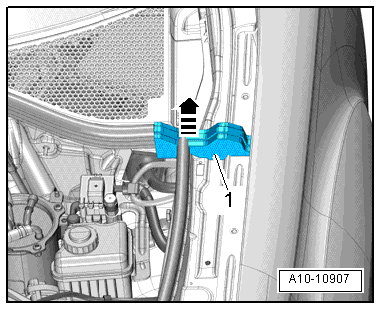

Fig 7: Removing Engine Hood Seal

Courtesy of AUDI OF AMERICA, LLC

-- Free up the right rear coolant pipe on the rear right engine lifting eye.

NOTE:

Ignore -arrows-.

-- Remove the left and right engine hood seal -1 - -arrow-.

Fig 8: Left And Right Hood Seal -1- -Arrow- Removal

Courtesy of AUDI OF AMERICA, LLC

-- Mount the Engine Support Bridge10-222A and ConnectionsT40091/3, Adapters10-222A/22and two threaded spindles -1- from the Lifting Tackle3033 on the fender bolting edge as illustrated.

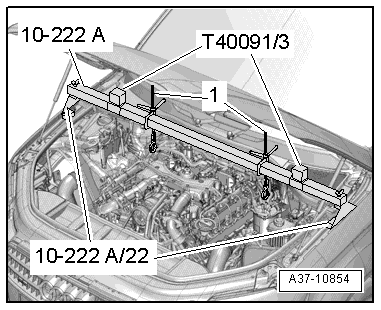

Fig 9: Installing Engine Support Bridge 10-222A

Courtesy of AUDI OF AMERICA, LLC

Spindles are at front.

-- Attach the hooks on the spindles -1- from the Lifting Tackle3033 to the left and right rear engine lifting eyes.

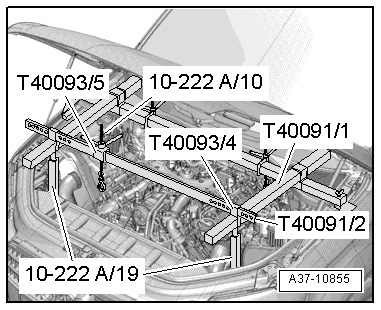

-- Install the additional Engine Support Bridge 10-222A parts as illustrated. Mount the Supports 10-222A/19 on the notches in the longitudinal members.

Fig 10: Installing Support T40091/2 Into Connections T40093/4

Courtesy of AUDI OF AMERICA, LLC

-- Slide the Support T40091/2 with the T40093/5 into both Connections T40093/4.

WARNING:

Secure the Support T40091/2 with the pins and splints from the Connector T40093/4.

-- Attach the Engine Support - Bracket w/Spindle and hook10-222A/10 into the front right engine eye.

-- Slightly pre-tension the engine by pulling the 3 spindles equally.

WARNING:

Only tension engine, do not lift.

-- Remove the rear driveshaft. Refer to REAR DRIVESHAFT .

Fig 11: Identifying Bolts -Arrows- At Transfer Case/Rear Driveshaft Connection

Courtesy of AUDI OF AMERICA, LLC

-- Remove transfer case. Refer to TRANSFER CASE, REMOVING AND INSTALLING .

Fig 12: Identifying Transfer Case Bolts -Arrows 1 And 2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -3-.

Fig 13: Remove Ball Head From Selector Shaft Lever

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolt -1- and remove the heat shield -2-.

-- Remove ball head -2- on the selector lever cable from the selector shaft lever using the Pry Lever80-200.

Fig 14: Identifying Locking Washer & Selector Lever Cable

Courtesy of AUDI OF AMERICA, LLC

-- Remove the clips -1- and then remove the selector lever cable from transmission.

NOTE:

Do not bend or kink the selector lever cable.

-- Remove the bolts -2- and remove the selector lever cable bracket.

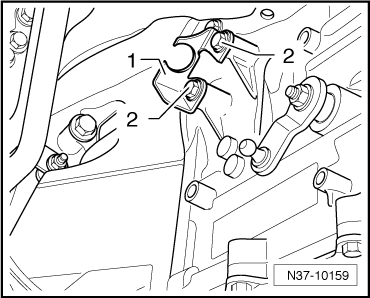

Fig 15: Identifying Bolts -2- And Selector Cable Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right bolts -arrows- and remove the bracket for the catalytic converters.

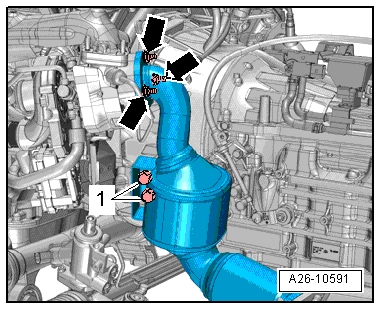

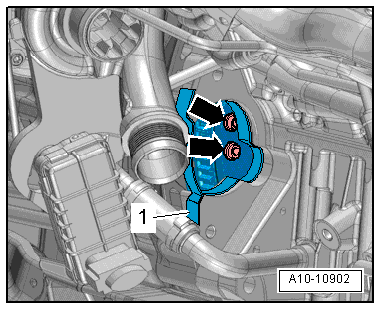

Fig 16: Removing Left Turbocharger Bracket And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and -2- and the left turbocharger bracket.

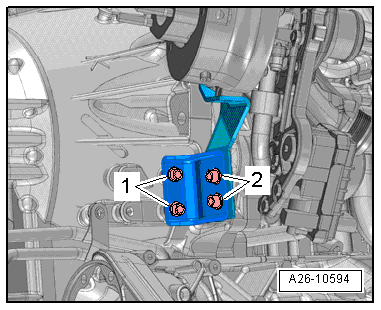

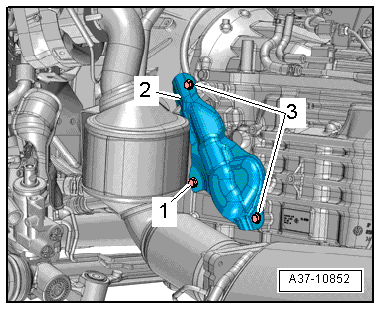

Fig 17: Right Turbocharger Bracket And Bolts Location

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -3-.

-- Remove the bolts -1- and -2- and the right turbocharger bracket.

Fig 18: Removing Right Turbocharger Bracket And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the starter. Refer to STARTER, REMOVING AND INSTALLING .

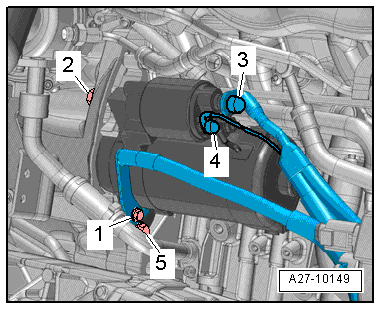

Fig 19: Removing/Installing Starter (4.2L TDI)

Courtesy of AUDI OF AMERICA, LLC

-- Free up the connector -2- on the bracket -5-.

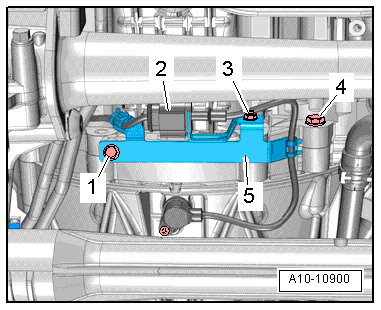

Fig 20: Removing Bracket And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- and -4- and the nut -3-.

-- Remove the bracket and the double nut underneath it.

-- Disconnect harness connectors -1-3- from the transmission.

Fig 21: Connect Connectors -1 Through 3-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Place a cloth under separation point to collect to escaping ATF.

Fig 22: Identifying ATF Line Bolts

Courtesy of AUDI OF AMERICA, LLC

Refer to TRANSMISSION, CLEAN WORKING CONDITIONS .

-- Remove the bolts -1 and 2- and then remove the ATF Lines from the transmission.

-- Seal any open lines and connections with a clean plug from the Engine Bung SetVAS6122.

-- Insert the Crankshaft SocketT40058 guide pins as follows:

Fig 23: Guide Pin And Adapter T40058

Courtesy of AUDI OF AMERICA, LLC

The large diameter -arrow 1- faces the engine.
The small diameter -arrow 2- faces the adapter.

-- Counterhold or turn the crankshaft using the Crankshaft SocketT40058 to loosen the torque converter bolts.

Fig 24: Identifying TDC With Special Tool Adapter T140058

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of camshaft timing chain jumping off.

Turn the crankshaft only in the direction of engine rotation -arrow-.

-- Remove the cover -1- forward.

Fig 25: Torque Converter Bolts Location

Courtesy of AUDI OF AMERICA, LLC

-- Remove the 6 torque converter bolts -arrow- in the opening for the started; to do this, turn the crankshaft 120° in direction of engine rotation.

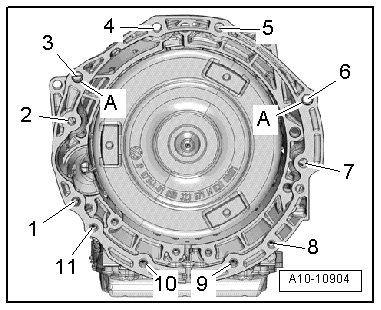

-- Remove the bolts -3 through 6- and -10 and 11- that connect the engine to the transmission.

Fig 26: Installing Transmission Support 3282

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Screw -7- remains installed hand-tight.

-- Install Transmission Support3282 on Engine/Gearbox JackVAG1383A.

Fig 27: Identifying 3282 onto V.A.G 1383 A

Courtesy of AUDI OF AMERICA, LLC

-- Lay the Transmission Support - Mounting Plate 493282/49 on the Transmission Support3282 as illustrated.

-- Align the arms of the transmission support to correspond with the holes in the adjustment plate.

-- Attach the support elements on the adjusting plate as illustrated.

-- Guide Engine/Gearbox JackVAG1383A with Transmission Support3282 under transmission.

NOTE:

The arrow symbol on the adjustment plate points in the direction of travel.

-- Align the adjusting plate so that it is parallel to the transmission.

-- Secure mount to threaded hole at back of transmission with an M10 x 20 bolt -arrow-.

-- Position side mounts at left and right in oil pan notch as shown in illustration.

Fig 28: Positioning Side Mounts On Left And Right In Oil Pan Notch

Courtesy of AUDI OF AMERICA, LLC

-- Lift the transmission slightly.

-- Remove last connecting screw between engine and transmission.

-- Press transmission off of engine while pressing torque converter off of drive plate -arrow-.

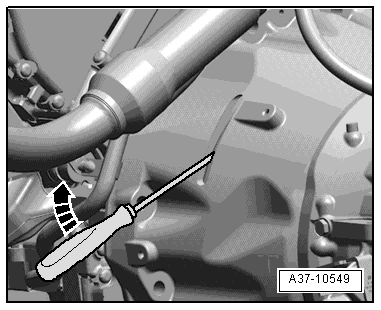

Fig 29: Prying Torque Converter Off Drive Plate -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Carefully lower transmission using Engine/Gearbox JackVAG1383A.

CAUTION:

A torque converter that slips out can destroy the ATF pump driver if the Bracket - Multiple Use30-211A is mounted.

When converter is inserted correctly, distance -a- between contact surfaces on threaded holes and on converter and torque converter bell housing contact surfaces is at least 19 mm.

Fig 30: Measuring Torque Converter

Courtesy of AUDI OF AMERICA, LLC

-- Use the Bracket - Multiple Use30 - 211A to secure the torque converter inside the transmission from falling out.

Fig 31: Identifying Bracket -30-211A- Attached To Secure Torque Converter

Courtesy of AUDI OF AMERICA, LLC
