Left Coolant Pipe, Removing And Installing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Removal

Proceed as follows:

NOTE:

When Installation, bring all cable ties back to same positions.

-- Drain the coolant, refer to COOLANT, DRAINING AND FILLING .

-- Remove the generator, refer to GENERATOR, REMOVING AND INSTALLING .

-- Disconnect coolant hose from -1- from connecting pieces.

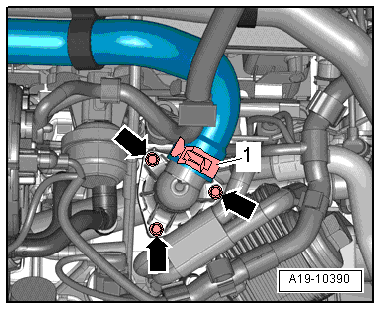

Fig 1: Identifying Coolant Hose From -1- From Connecting Pieces
GWWA19-10390Courtesy of AUDI OF AMERICA, LLC
NOTE:

Ignore -arrows-.

-- Remove coolant hose -2- from connecting pieces and free up coolant hoses to intake manifold.

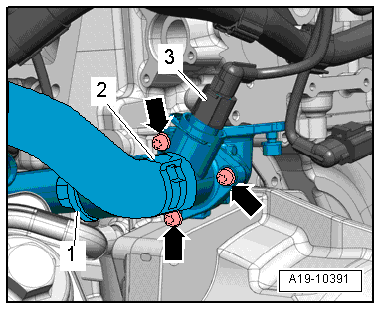

Fig 2: Identifying Bolts -Arrows- On Coolant Connecting Pieces
GWWA19-10391Courtesy of AUDI OF AMERICA, LLC

-- Move coolant houses forward.

-- Disconnect the connector -3- from the Engine Coolant Temperature Sensor -G62-.

-- Remove bolts on connecting pieces -arrows- and remove clamp -1-.

-- Remove the connecting pieces -2- -lower arrow- by pressing the coolant pipe -1- in the direction of the coolant pump -upper arrow- with a pry bar.

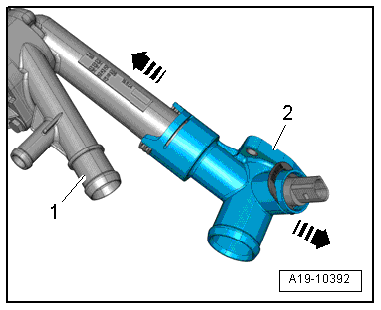

Fig 3: Pressing Coolant Pipe -1- In Direction Of Coolant Pump -Upper Arrow- To Remove Connecting Pieces -2- -Lower Arrow-
GWWA19-10392Courtesy of AUDI OF AMERICA, LLC

-- Free up electrical connector -1- for Engine Speed Sensor -G28- on oil dipstick guide tube.

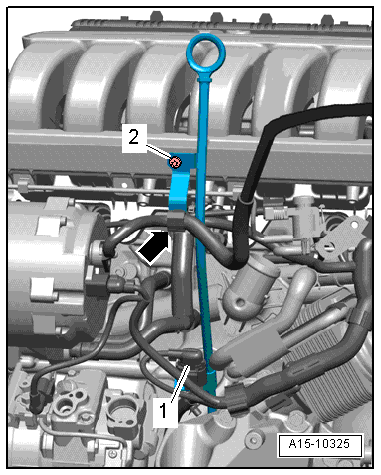

Fig 4: Guide Tube for Oil Dipstick
GWWA15-10325Courtesy of AUDI OF AMERICA, LLC

-- Free up B+ wire -arrow- on oil dipstick guide tube.

-- Remove bolt -2- and remove oil dipstick guide tube.

-- Unclip the Intake Manifold Runner Control Valve -N316- -arrow- from bracket and move upward slightly with the lines connected.

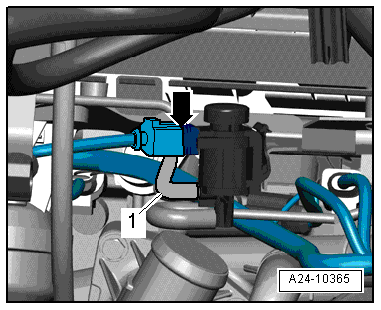

Fig 5: Locating Intake Manifold Runner Control (IMRC) Valve -N316-
GWWA24-10365Courtesy of AUDI OF AMERICA, LLC
NOTE:

Ignore -Item 1-.

-- Remove coolant hoses -arrows- from left coolant pipe.

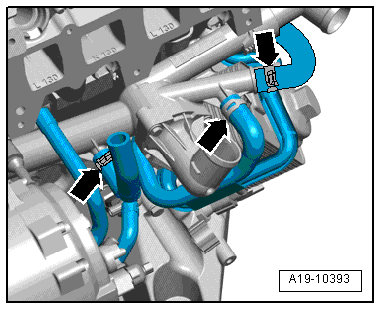

Fig 6: Identifying Coolant Hoses -Arrows- From Left Coolant Pipe
GWWA19-10393Courtesy of AUDI OF AMERICA, LLC

-- Remove left coolant pipe from cylinder block.

Installation

Install in reverse order of removal. Note the following:

NOTE:

Replace the o-rings.

-- Clean or smooth cylinder block O-ring sealing surface.

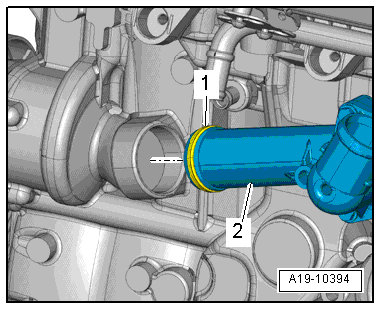

Fig 7: Identifying O-Ring -1- And Slide It Onto Left Coolant Pipe -2-
GWWA19-10394Courtesy of AUDI OF AMERICA, LLC

-- Coat the new o-ring -1- with coolant and slide it onto the left coolant pipe -2-.

-- Insert coolant pipe in hole at cylinder block.

-- Install oil dipstick guide tube, refer to Fig 8.

Fig 8: Guide Tube for Oil Dipstick
GWWA15-10325Courtesy of AUDI OF AMERICA, LLC

-- Install the generator, refer to GENERATOR, REMOVING AND INSTALLING .

-- Fill the coolant, refer to COOLANT, DRAINING AND FILLING .
