Fan Shroud, Removing And Installing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Fig 1: Cover Over Radiator -Arrows-

Courtesy of AUDI OF AMERICA, LLC

Proceed as follows:

-- Turn off the ignition.

-- Pull cover over radiator -arrows-.

Vehicles with Automatic Transmission:

Fig 2: Identifying Air Guide Hose -1-, Bolts -2- And -4-, And Electrical Connector -3-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

-- Loosen bolt -2- and remove bolt -4-.

-- Lay aside Brake System Vacuum Pump -V192-.

NOTE:

Ignore -Item 1-.

All Vehicles:

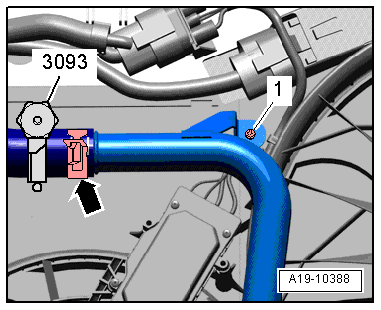

Fig 3: Identifying Bolt -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1-.

NOTE:

Ignore -arrow- and Hose Clamps - Up To 40mm3093.

-- Remove bolt -1- and move front coolant pipe back.

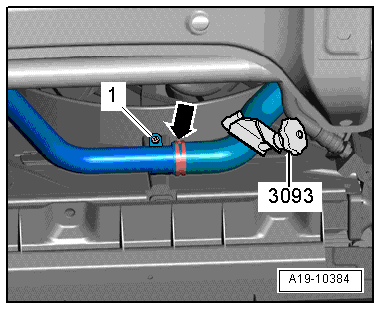

Fig 4: Identifying Coolant Hose -Arrow- From Front Coolant Pipe

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -arrow- and Hose Clamps - Up To 40mm3093.

Fig 5: Identifying Screws And Connectors On Fan Mount And Pressing Locking Tabs At Left And Right On Fan Shroud -Arrow-

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Danger of personal injury due to the coolant fan turning on by itself.

Disconnect electrical connectors before working on fan shroud.

-- If present, remove bolts -1, 4, 5, 6- on fan shroud.

-- Disconnect electrical connectors -2 and 3- and free up electrical wiring.

-- Press locking tabs at left and right on fan shroud -arrow- and at the same time, lift fan shroud out of engine compartment.

Installation

Install in reverse order of removal. Note the following:

-- Install front coolant pipe, refer to FRONT COOLANT PIPE, REMOVING AND INSTALLING .

Vehicles with Automatic Transmission:

-- Install the Brake System Vacuum Pump -V192-, refer to Brake System Vacuum Pump -V192-, REMOVING AND INSTALLING .
