Receiver/Dryer, Removing And Installing: Removing

-- Turn off the ignition.

-- Discharge the refrigerant circuit. Refer to USING SERVICE STATION . For additional information, refer to OVERVIEW - REFRIGERANT CIRCUIT, NOT OPENING THE REFRIGERANT CIRCUIT, VEHICLES WITHOUT HIGH VOLTAGE SYSTEM and OVERVIEW - REFRIGERANT CIRCUIT, OPENING THE REFRIGERANT CIRCUIT, VEHICLES WITHOUT HIGH VOLTAGE SYSTEM (Refrigerant R134a, Servicing; Refrigerant Circuit, Using Service Station).

NOTE:

Depending on the allocation of the service connection to the refrigerant line and vehicle version, it may be necessary to remove the left additional reinforcement on the tower brace so that the service coupling of the A/C service station can be connected (for example, on the Audi Q5). Refer to OVERVIEW - SUSPENSION STRUT WITH MOUNTING BRACKET, SHOCK ABSORBER FORK, UPPER CONTROL ARM AND TOWER BRACE and USING SERVICE STATION . For additional information, refer to OVERVIEW - REFRIGERANT CIRCUIT, NOT OPENING THE REFRIGERANT CIRCUIT, VEHICLES WITHOUT HIGH VOLTAGE SYSTEM and OVERVIEW - REFRIGERANT CIRCUIT, OPENING THE REFRIGERANT CIRCUIT, VEHICLES WITHOUT HIGH VOLTAGE SYSTEM (Refrigerant R134a, Servicing; Refrigerant Circuit, Using A/C Service Station).

-- Remove the bolts (or clips) -1, 2, 3 and 5-. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

Fig 1: Front Lock Carrier Cover

Courtesy of AUDI OF AMERICA, LLC

-- Lift the cover -4- on the lock carrier and disengage it on the radiator grille. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

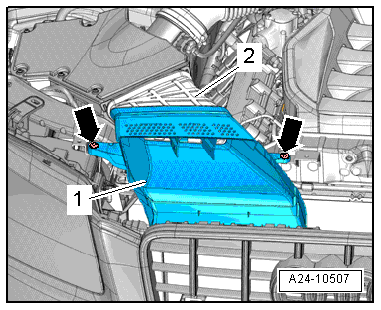

Fig 2: Identifying Air Duct Components

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air guide -1- on the intermediate flange -2- for the air filter housing.

-- Remove the front noise insulation. Refer to OVERVIEW - NOISE INSULATION .

NOTE:

Depending on the vehicle version, it may be necessary to remove the bumper cover in order to remove the front noise insulation (for example, on the Audi A4 allroad). Refer to Front Bumper .

Vehicles with charge air cooler or engine oil cooler, installed under the condenser:

-- Remove the condenser. Refer to CONDENSER, REMOVING AND INSTALLING .

All:

-- Remove the bolts -A-.

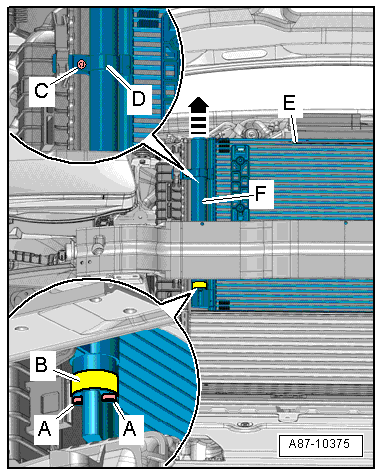

Fig 3: Identifying Screws

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -C- and the bracket -D- upward.

-- Remove the receiver/dryer -F- upward from the condenser -E- -arrow-.

NOTE:

Be sure not to lose the rubber grommet -B- when removing the receiver/dryer.

Seal open connections on the receiver/dryer and condenser with suitable caps (to prevent dirt and moisture from entering).
