Lock Carrier Cover, Removing And Installing

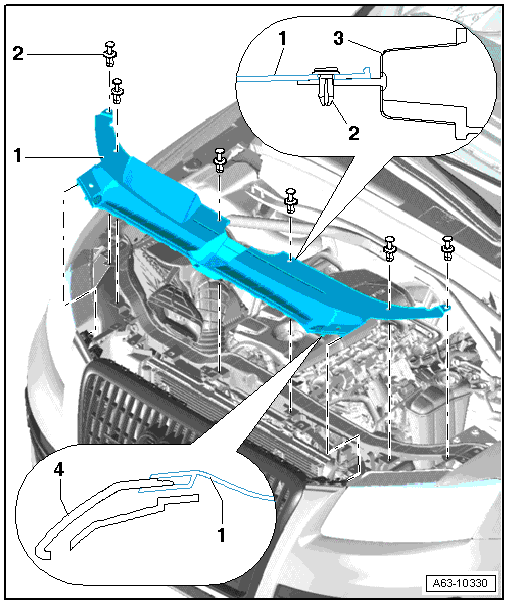

Fig 1: Identifying Lock Carrier Cover

Courtesy of AUDI OF AMERICA, LLC

1. Cover
   • To remove, remove the locking pin and release the expanding clip.
   • Remove the expanding clip from the cover.
   • Remove the cover back from the radiator grille.
   • When installing, the tabs on the cover must engage on the radiator grille and on the sides of the bumper cover.
   • Insert the expanding clip through the cover into the lock carrier and press the locking pin in.
2. Expanding Clip
   • Remove the clamping pin when removing.
   • Only press the clamping pin in when installing.
   • Quantity: 4
3. Lock Carrier
4. Radiator Grille
