Fog Lamps, Adjusting

Procedure

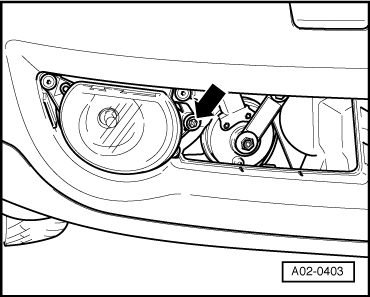

Fig 1: Identifying Adjustment Screw For Lamp Range

Courtesy of AUDI OF AMERICA, LLC

-- Complete test and adjustment requirements. Refer to HEADLAMPS, CHECKING AND ADJUSTING CONDITIONS .

-- To adjust headlamp range, turn adjusting screw -arrow-.

NOTE:

Side adjustment is not intended.

Illustrated without the air intake grille.
