Headlamps, Checking And Adjusting Conditions

• Tire pressure OK
• Headlamp lenses must be clean and dry.
• Headlamps lenses must not be damaged.
• Headlamp reflectors and bulbs OK.
• Vehicle load must be created.

Vehicle load on driver's seat in otherwise unloaded vehicle (curb weight).

• One person or 75 kg.

The curb weight is the weight of the operational vehicle with completely full fuel tank, including the weight of all equipment carried in operation.

• Fuel tank is at least 90% full.
• Equipment, e.g. spare wheel, tools, vehicle jack, fire extinguisher, etc.

If the fuel tank is not at least 90% full, the load must be created as follows.

-- Check fuel tank fill lever in instrument cluster tank gauge and compare with the following table. Place additional weight in the luggage compartment, if necessary.

Example, If the fuel tank is half full, an additional 25 kg must be placed in the luggage compartment.

• Roll the vehicle several yards or move it back and forth several times to seat the springs.
• Vehicle and headlamp adjusting unit must be on a level surface.
• Parking brake must not be engaged so vehicle is not under stress.
• Headlamp adjusting unit must be aligned to vehicle. Refer to headlamp adjusting unit operating instructions.
  Fig 1: Identifying Headlamp Adjuster Distance

  Courtesy of AUDI OF AMERICA, LLC
• The headlamp adjuster must be distance -a- 30 to 70 cm in front of the headlamp and should not deviate more than dimension -b- = 3 cm from the headlamp center point.
• Set the angle dimension on the headlamp adjusting unit. Refer to headlamp adjusting unit operating instructions.

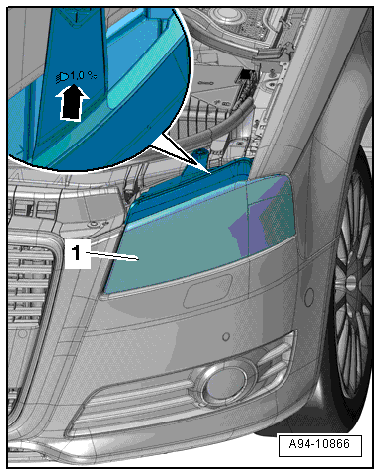

• The angle -arrow- is stamped on the top of the headlamp -1- in %.
  Fig 2: Identifying Headlamp Angle Stamp

  Courtesy of AUDI OF AMERICA, LLC
