Three-Point Seat Belt Assembly Overview

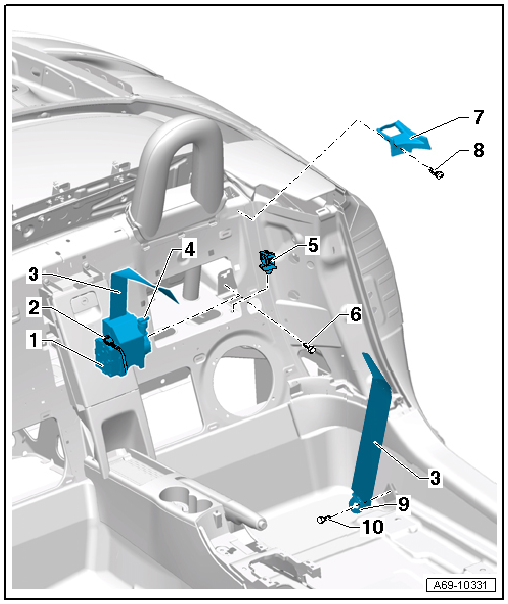

Fig 1: Three-Point Seat Belt Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Three-point seat belt
- Without switchable belt load limiter
  - Removing and Installing, refer to THREE-POINT SEAT BELT WITH BELT TENSIONER/FORCE LIMITER
- With switchable force limiter (country-specific)
  - Removing and Installing, refer to THREE-POINT SEAT BELT WITH BELT TENSIONER/FORCE LIMITER
Belt tensioner connector
- Removing and installing, refer to THREE-POINT SEAT BELT WITH BELT TENSIONER/FORCE LIMITER
Belt webbing
Switchable belt load limiter connector
- Versions for specific countries:
- Removing and Installing, refer to THREE-POINT SEAT BELT WITH BELT TENSIONER/FORCE LIMITER
Coupling
- Left: for switchable belt load limiter
- Right: for the seat belt tensioner
- Clipped into body
Bolt
- 45 Nm
Belt guide
- Removing and Installing, refer to BELT GUIDE ANCHORAGE POINT
Bolt
- 6 Nm
- Replacing
Belt anchor
- Removing and Installing, refer to OUTER BELT END FITTING
Bolt
- 55 Nm
