Outer Belt End Fitting

Removing

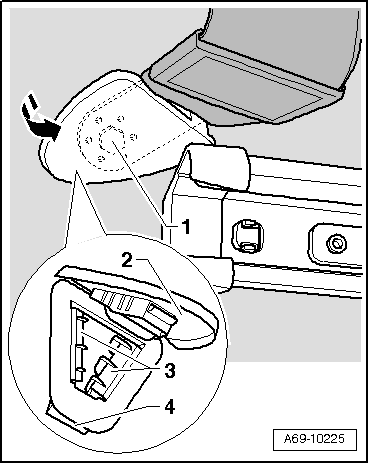

Fig 1: Pulling Cover -2- In Direction Of -Arrow- & Opening

Courtesy of AUDI OF AMERICA, LLC

-- Move seat forward and fold backrest forward.

-- Pull the cover -2- in direction of -arrow- and open it.

-- Remove cover -2- upward out of floor covering.

-- Remove bolt -1-.

Installation

-- Install bolt -1-.

-- When installing, slide tab -4- under floor covering.

-- Press tabs -3- under floor covering by closing cover -2-.
