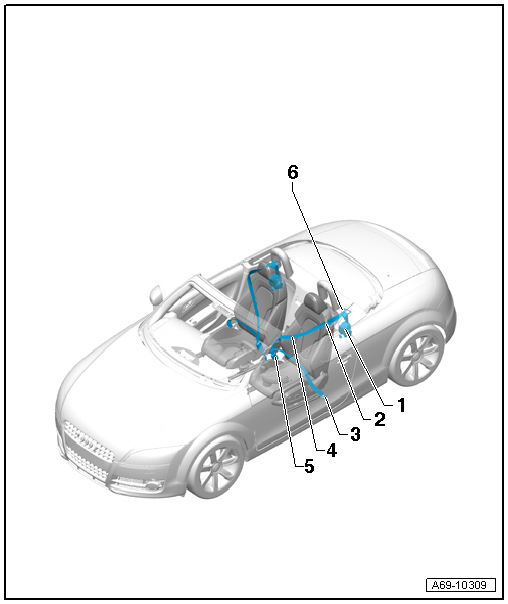

Seat Belt And Mounting Points Assembly Overview
- Belt roller/belt tensioner/switchable belt load limiter
- For three-point seat belt
- Switchable force limiter only for certain countries
- Assembly Overview:
- Belt roller with belt tensioner THREE-POINT SEAT BELT ASSEMBLY OVERVIEW
- Belt roller with tensioner and switchable force limiter THREE-POINT SEAT BELT ASSEMBLY OVERVIEW
- Retaining loop
- For three-point seat belt
- Is secured on seat
- Outside belt anchor
- Removing and Installing, refer to OUTER BELT END FITTING
- Three-point seat belt
- Three-point seat belt assembly overview:
- With belt tensioner, refer to THREE-POINT SEAT BELT ASSEMBLY OVERVIEW
- With belt tensioner and switchable force limiter, refer to THREE-POINT SEAT BELT ASSEMBLY OVERVIEW
- Three-point seat belt assembly overview:
- Seat Belt Latch Anchorage Point
- Assembly Overview, refer to BELT LATCH ANCHORAGE POINT ASSEMBLY OVERVIEW
- On front seat
- Without seat belt fasten sensor, removing and installing, refer to FRONT BELT LATCH ANCHORAGE POINT
- Seat Occupied Recognition System, Passenger Airbag Deactivation, Removing and Installing, refer to FRONT BELT LATCH ANCHORAGE POINT
- Always replace the seat belt latch if the belt tensioner has deployed with the belt on
- Belt guide
- Removing and Installing, refer to BELT GUIDE ANCHORAGE POINT
