Special Tools

Fig 1: Identifying Special Tools -- Transmission Housing Servicing (Transmission As Of Approx. 04.2003) (2 Of 3)

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Guide Pin VW 436 A
• Guide Pin VW 439
• Slide Hammer-Complete Set VW 771
• Holding Fixture VW 801
• Guide Pin 10 - 15
• Thrust Pad 3124

Fig 2: Identifying Special Tools -- Clutch Housing, Servicing

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Punch VW 407
• Sleeve 30 - 21
• Drift T10168
• Thrust piece T40008
• -1- Kukko 21/2 Internal puller and Kukko 21/4
• -4- Kukko support 22/1 and 22/2

Fig 3: Identifying Special Tools -- Transmission Housing, Shift Mechanism, Input Shaft, Output Shafts (Pinion Shafts), Differential And Selector Rods, Removal/Installation

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Bracket 30 - 211 A
• Thrust piece T10042
• Drift T10169
• Thrust piece T40008
• Torque Wrench V.A.G 1331
• Heat Gun V.A.G 1416

Fig 4: Special Tools For Transmission Removing

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Engine Support Bridge 10 - 222 A
• Hook 10 - 222 A /10
• Hose Clamps Up to 25 mm Diameter.3094
• Transmission Support 3282
• Pin 3282/29
• Adjustment Plate 3282/33

Fig 5: Special Tools For Transmission Support

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Engine/Transmission Jack V.A.G 1383 A
• Engine Support Basic Set T40091
• Engine Support Supplement Set T40093

Fig 6: Special Tools For Attaching Transmission To Assembly Stand

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Holding Plate VW 309
• Holding Fixture VW 313
• Transmission Support VW 353

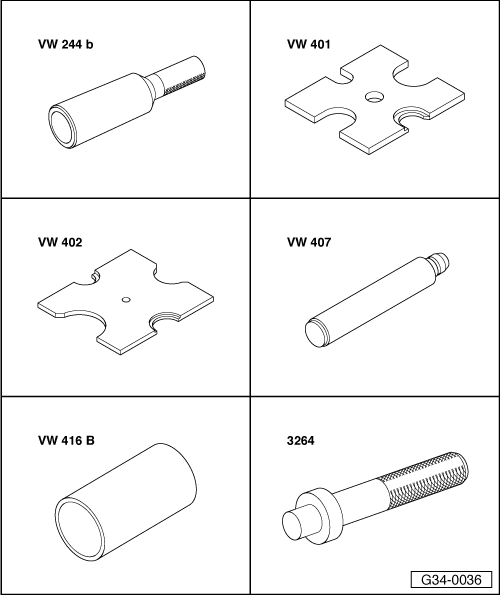

Fig 7: Identifying Special Tools -- Transmission Housing, Servicing (2 Of 3)

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Driving Sleeve VW 244 B
• Thrust Plate VW 401
• Thrust Plate VW 402
• Punch VW 407
• Sleeve VW 416 B
• Driver 3264

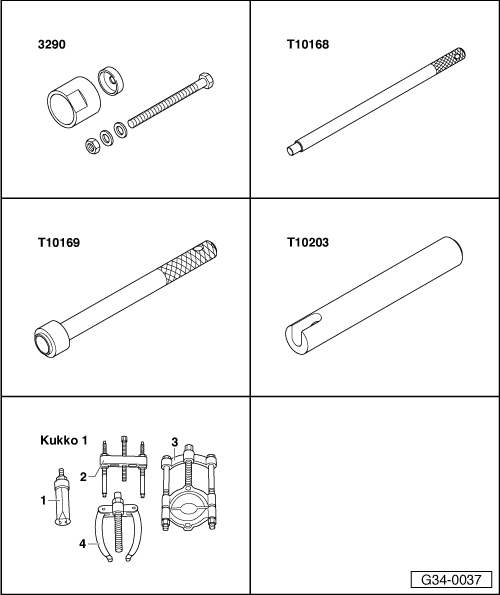

Fig 8: Identifying Special Tools -- Transmission Housing, Servicing (3 Of 3)

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Subframe Support Assm. Device 3290
• Drift T10168
• Drift T10169
• Thrust piece T10203
• -1- Kukko 21/2 Internal puller and Kukko 21/4
• -4- Kukko 22/2 counter-support

Fig 9: Identifying Special Tools -- Transmission Housing, Shift Mechanism, Input Shaft, Output Shafts (Pinion Shafts), Differential And Selector Rods, Removal/Installation

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Holding Plate VW 309
• Holding Fixture VW 313
• Transmission Support VW 353
• Thrust Tube VW 455
• Slide Hammer-Complete Set VW 771
• -1- Kukko 21/1 internal puller
• -3- Kukko 17/0 separating tool
• -4- Kukko 22/1 counter-support

Fig 10: Identifying Special Tools - Selector Forks, Disassembling And Assembling

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Thrust Plate VW 402
• Punch VW 411
• Sleeve VW 423
• Thrust Pad 16.5/28 mm Dia. VW 431
• -1- Kukko 21/3 internal puller
• -4- Kukko 22/1 counter-support

Fig 11: Identifying Special Transmission Tools

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Bracket 30-211A
• Thrust piece T10042
• Thrust piece T10143
• Thrust piece T40008
• Torque Wrench V.A.G 1331
• Heat gun V.A.G 1416
• Drift T10169
• or Drift T10362 LOCK SLEEVE DIFFERENTIATION

Special tools and workshop equipment required

• Triple Square Socket Driver 3357
  Fig 12: Identifying 3357 Triple Square Socket Driver

  Courtesy of AUDI OF AMERICA, LLC
• Used Oil Collecting and Extracting Device V.A.G 1782
  Fig 13: Identifying Oil Extractor V.A.G 1782

  Courtesy of AUDI OF AMERICA, LLC
• Charging Device F/haldex 2 Coup. VAS 6291
  Fig 14: Identifying Charging Device F/Haldex 2 Coup. VAS 6291

  Courtesy of AUDI OF AMERICA, LLC
• Connecting Pin T10027 A
  Fig 15: Identifying Connecting Pin T10027 A

  Courtesy of AUDI OF AMERICA, LLC
• Trim Removal Wedge 3409
  Fig 16: Identifying 3409 Wedge

  Courtesy of AUDI OF AMERICA, LLC
• Hose Clip Pliers V.A.G 1275
  Fig 17: Identifying Hose Clamp Pliers V.A.G 1275

  Courtesy of AUDI OF AMERICA, LLC
• Adapter VW 771/40
  Fig 18: Identifying Slide Hammer VW 771

  Courtesy of AUDI OF AMERICA, LLC
• Bracket T10338
  Fig 19: Identifying Bracket T10338

  Courtesy of AUDI OF AMERICA, LLC
• Transmission Support Jig 3336
  Fig 20: Identifying Transmission Support Jig. 3336

  Courtesy of AUDI OF AMERICA, LLC
• Shop Crane VAS 6100
  Fig 21: Identifying Shop Crane VAS 6100

  Courtesy of AUDI OF AMERICA, LLC
• Engine Support Basic Set T40091
  Fig 22: Identifying Engine Support Basic Set T40091

  Courtesy of AUDI OF AMERICA, LLC
• Socket and Extended Bit T10107 A (SW 6 mm)
  Fig 23: Identifying Socket and Extended Bit T10107 A (SW 6 mm)

  Courtesy of AUDI OF AMERICA, LLC
• Hex Ball Socket 3247
  Fig 24: Identifying Hex Ball Socket 3247

  Courtesy of AUDI OF AMERICA, LLC
• Bracket 2024 A /1
  Fig 25: Identifying Bracket 2024 A /1

  Courtesy of AUDI OF AMERICA, LLC
• Pulling Hook T20143/1
  Fig 26: Identifying Extractor Hook T20143

  Courtesy of AUDI OF AMERICA, LLC
• Thrust Piece T40008
  Fig 27: Identifying Thrust Piece T40008

  Courtesy of AUDI OF AMERICA, LLC
• Sleeve VW 423
  Fig 28: Identifying Sleeve VW 423

  Courtesy of AUDI OF AMERICA, LLC
• Thrust Block T10083
  Fig 29: Identifying Pressing Support T10083

  Courtesy of AUDI OF AMERICA, LLC
• Used Oil Collecting and Extracting Device V.A.G 1782
  Fig 30: Identifying Oil Extractor V.A.G 1782

  Courtesy of AUDI OF AMERICA, LLC
• Extractor Lever VW 681
  Fig 31: Identifying Extractor Lever VW 681

  Courtesy of AUDI OF AMERICA, LLC
• Socket and Extended Bit T10107 A
  Fig 32: Identifying Socket and Extended Bit T10107 A (SW 6 mm)

  Courtesy of AUDI OF AMERICA, LLC
• Drift T10362
  Fig 33: Identifying Drift T10362

  Courtesy of AUDI OF AMERICA, LLC
