Transmission Installation Tightening Specifications

WARNING: This page is about a different car, the 2009 Audi TT and 2008 Audi TT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The tightening specifications apply only to lightly greased, oiled, phosphated, or black-finished nuts and bolts.
Additional lubricant such as engine or transmission oil may be used, but do not use graphite lubricant.
Do not use degreased parts.
Tolerance for torque specification ± 15%.

Manual Transmission Mount on Engine

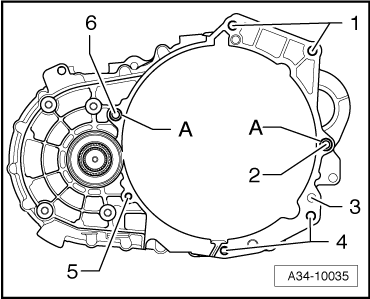

Fig 1: Transmission To Engine Bolts (Transmission Flange Face) Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

Item	Bolt ¹	Nm
1 ²⁾ , 3 ³⁾	M12x55	80
2 ⁴⁾	M12x65	80
	M12x55	80
4 ⁴⁾ , 5 ⁴⁾⁵⁾	M10x50	40
6 ³⁾	M12x80	80
A	Alignment sleeves for centering
¹⁾ Replace bolts. ²⁾ Bolt with 8 mm threaded pin ³⁾ With permanent washer. ⁴⁾ Bolted from the engine side into the transmission. ⁵⁾ The securing clip must be inserted in the engine oil pan
